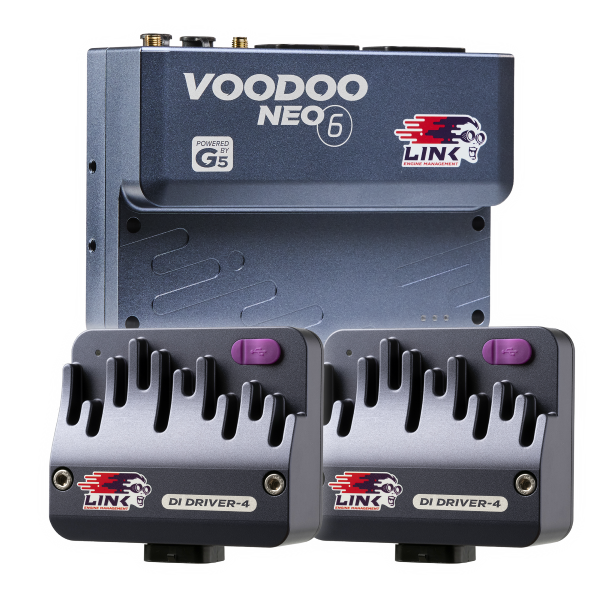

Link G5 Voodoo Neo 6 + 2 x DI Driver 4 Bundle - 156-9200B

Unlock full control of your high-performance engine with the G5 Voodoo Neo 6 + two DI Driver‑4's Bundle. Ideal for direct injection setups, this package includes:

• G5 Voodoo Neo 6 ECU – Controls up to 6-cylinder direct/staged injection engines or 8-cylinder port/direct injection engines with advanced spark control.
• 2 x DI Driver-4 – Seamlessly manages up to 4 direct injectors each; stackable for expanded setups. Two of these are included in the package.

Key Features:

• Built-in wideband controller and dual e-throttle H-bridge outputs
• USB-C with power-over-USB, Wi-Fi, Ethernet, and GPS connectivity
• 1 GB of onboard logging (up to 100 kHz, 250 channels)
• Robust I/O: 12 injector outputs (4 DI capable), 8 ignition, 6 aux, and 6 flexible ADIOs
• Compact, sealed CNC enclosure with versatile mounting options

This bundle delivers cutting-edge tuning capability, fast setup, and maximum flexibility for serious motorsport applications.

Manuals & Install Guides

• G5 Voodoo Neo ECUs - specifications
• DI-Driver-4 - specifications
