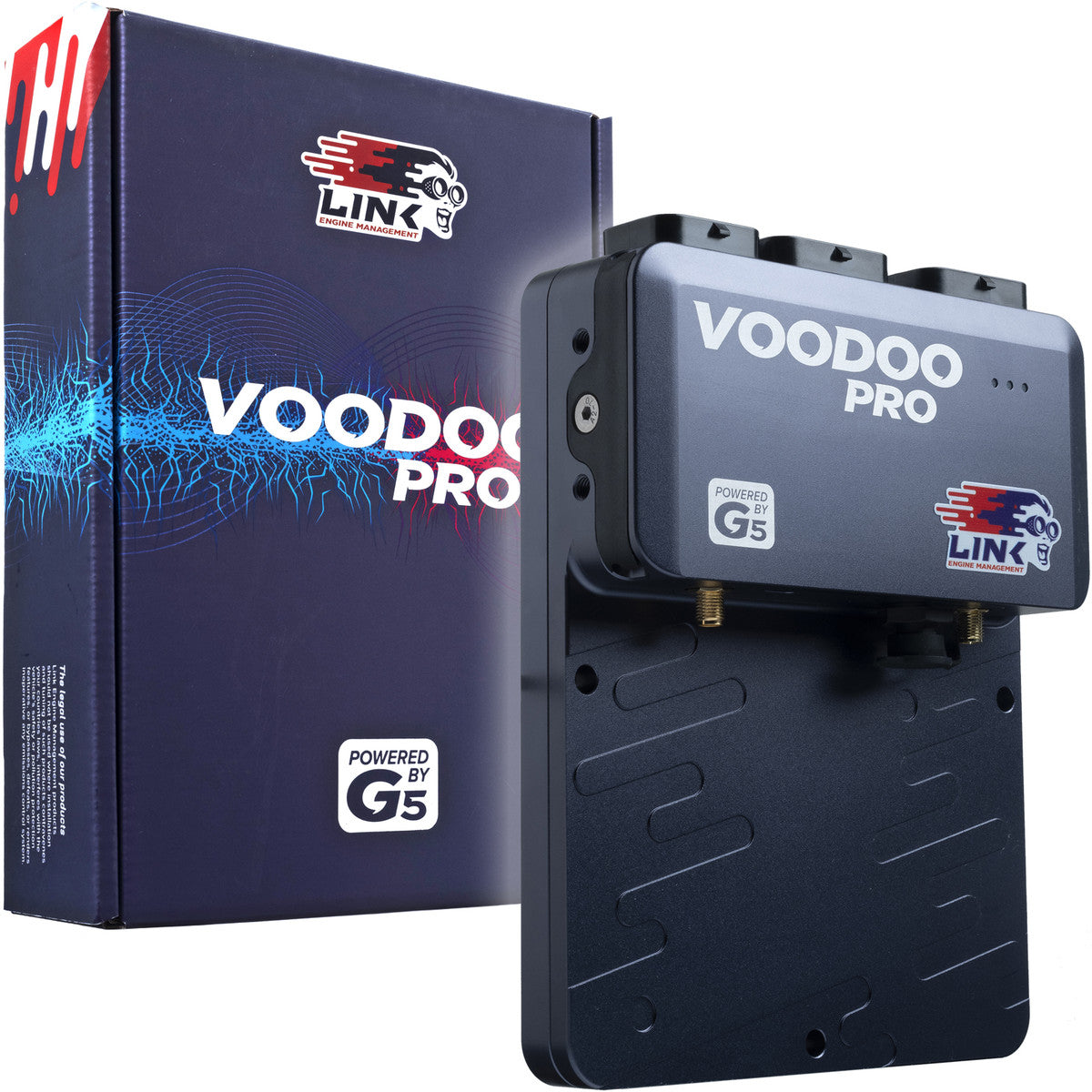

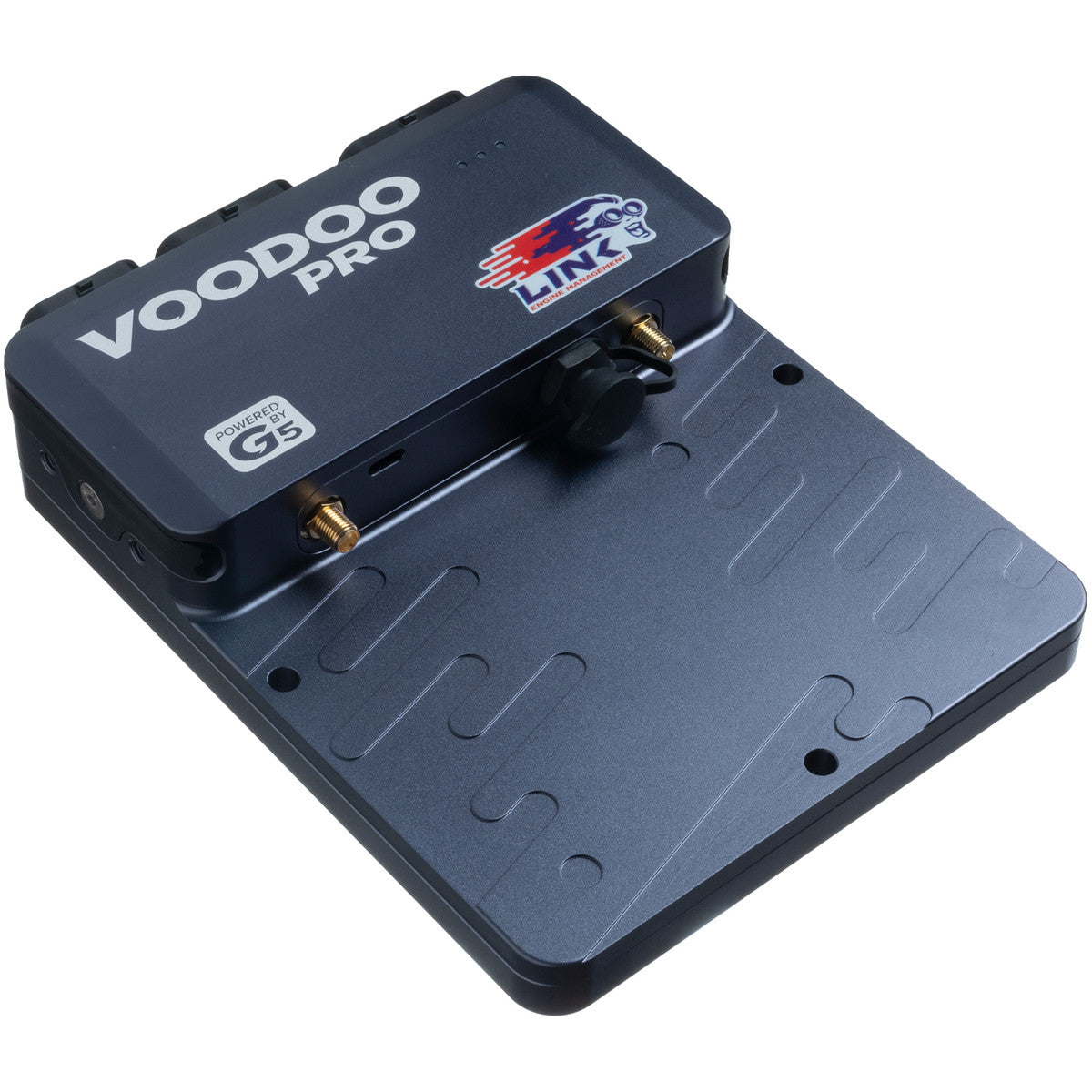

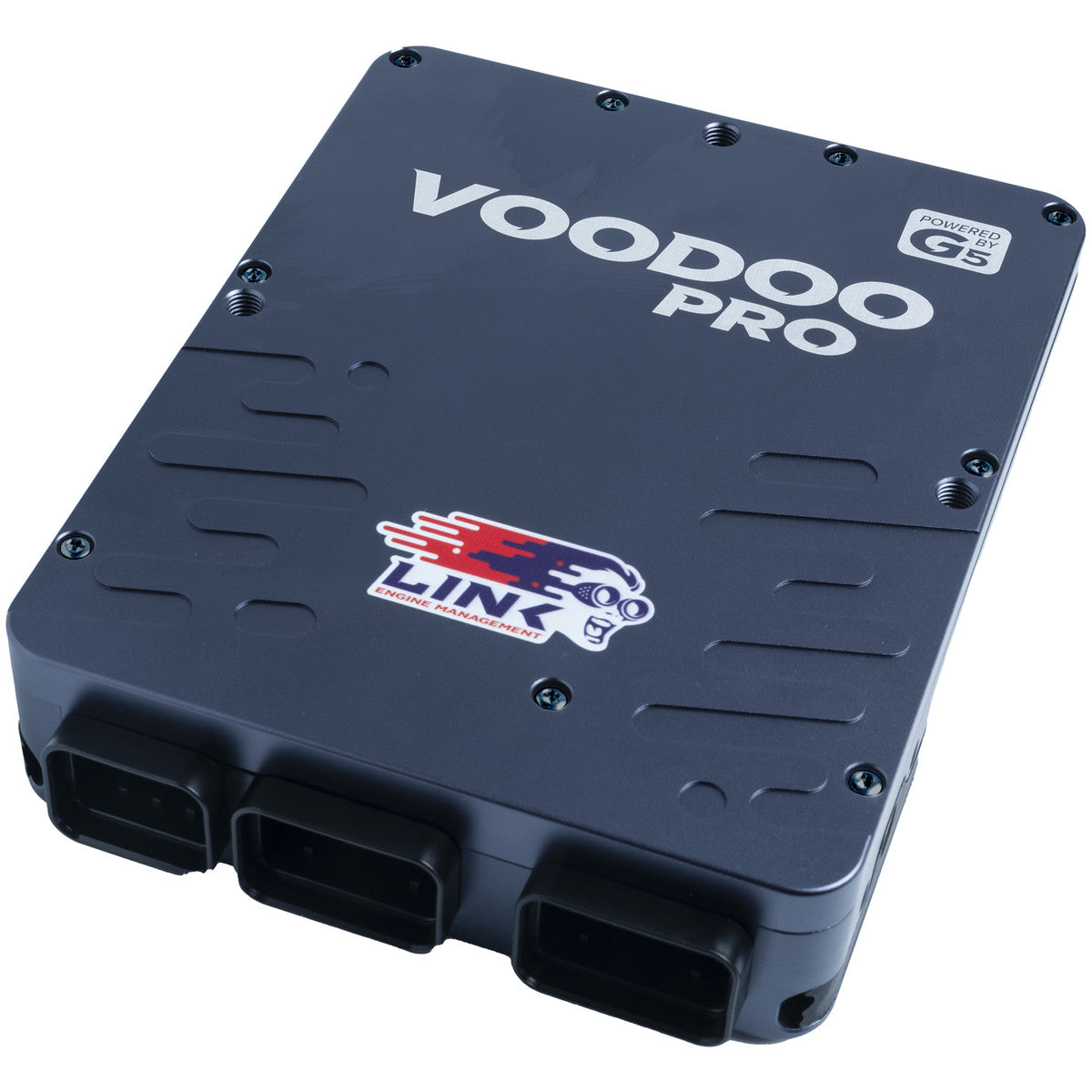

LINK G5 Voodoo Pro 153-5000

G5 Voodoo Pro puts real magic in your hands and opens a new world of possibilities with the ability to control port plus direct injection, more injector and ignition drives, advanced communications and many more features.

With 12 Injection, 8 Ignition and 4 multi-purpose (inj, ign, aux) drives (24 total) the G5 Voodoo Pro can run up to:

• 12 cylinders port or direct injection and direct spark, or
• 8 cylinders with direct/port staged injection and direct spark.

The supported cylinder count depends on the type and number of fuel pumps used.

The G5 Voodoo Pro works on a variety of vehicles, please contact a LinkECU Reseller or Technical Support for advice regarding your specific project.

In the Box

• G5 Voodoo Pro ECU
• USB-C Connection Cable
• Wi-Fi Antenna
• 4m GPS Antenna (Magnetic or Adhesive Mount)
• USB-C and SMA Dust Covers
• QuickStart Guide (A5)
• Installer I/O table (A3)
• Mounting Screws
• Link stickers

Features

• 12 Injection, 8 Ignition and 4 multi-purpose (inj, ign, aux) drives (24 total)
• A cost-effective solution to proven Direct Injection control (DI) on up to 12 injection drives (using an external OEM or aftermarket driver box)
• Built-in Wi-Fi, with real-time PC Link connection
• Built-in Global Positioning System (GPS) up to 50Hz
• Built-in Ethernet, the fastest and most stable way to view or download data logs, calibrate and tune your ECU
• Highly customisable IO, now using eight ADIO pins
• Dual onboard LSU 4.9 digital wideband controllers
• Dual on-board H-Bridges that support things like E-Throttle (Drive by Wire) and low power E-Wastegates
• 1GB onboard of data logging memory
• All G4X and G5 tunes are compatible with the G5 Voodoo Pro
• CNC Case, Sealed enclosure

Specifications

Outputs

• 12 injector drives
• 8 ignition drives
• 4 injector/ignition dual role drives
• 6 auxiliary Outputs
• +5V sensor power supply
• Any unused injector/ignition pins can be used as an auxiliary pin
• All ignition and auxiliary pins are fly back protected

Inputs

• 10 digital inputs
• 4 temperature inputs
• 14 analogue inputs
• 2 trigger inputs
• 2 knock inputs

Input/Outputs

• 8 ADIO dual purpose pins

Communications

• USB-C (cable included)
• Connect directly to the ECU via built-in Wi-Fi Access Point, or add it to an existing network (Antenna Included)
• Dual CAN (CAN 1 on CAN connector, CAN 2 on header E)
• GPS (antenna included)
• Ethernet with daisy chain support

Size & Weight

• Depth: 109.2 mm (4.3 inches)
• Width: 193.5 mm (7.6 inches)
• Max height: 45.0 mm (1.8 inches)
• Weight: 768g (27 ounces)

Connectivity

The G5 Voodoo Pro supports the following comms standards:

• USB-C
• Wi-Fi
• CAN
• GPS
• Ethernet

The G5 Voodoo Pro uses A, B & E Superseal headers. A & B headers are closely matched pinouts with the G4X and G5 Voodoo Neo platforms.

It is now possible to connect to your ECU using a standard USB-C cable, or alternatively by using Wi-Fi or Ethernet.

GPS connectivity can be initialised by simply adding a GPS antenna.

Manuals & Install Guides

• Product Introduction
• Knowledge Base
• Direct Injection Information
