Link JZXLink - JZX100X - 232-4000

Part Number: 232-4000
Authorized Link ECU Dealer Ships from Calgary
Link Black Friday Sale: long ETA We place our Link sale order after the sale ends on Nov 30. Sale orders usually arrive in Calgary in early 2027. Need it sooner? Contact us before you order. support@boostfactory.ca

Warehouse Icon Inventory Location: Manufacturer Warehouse USA

Stock: 0

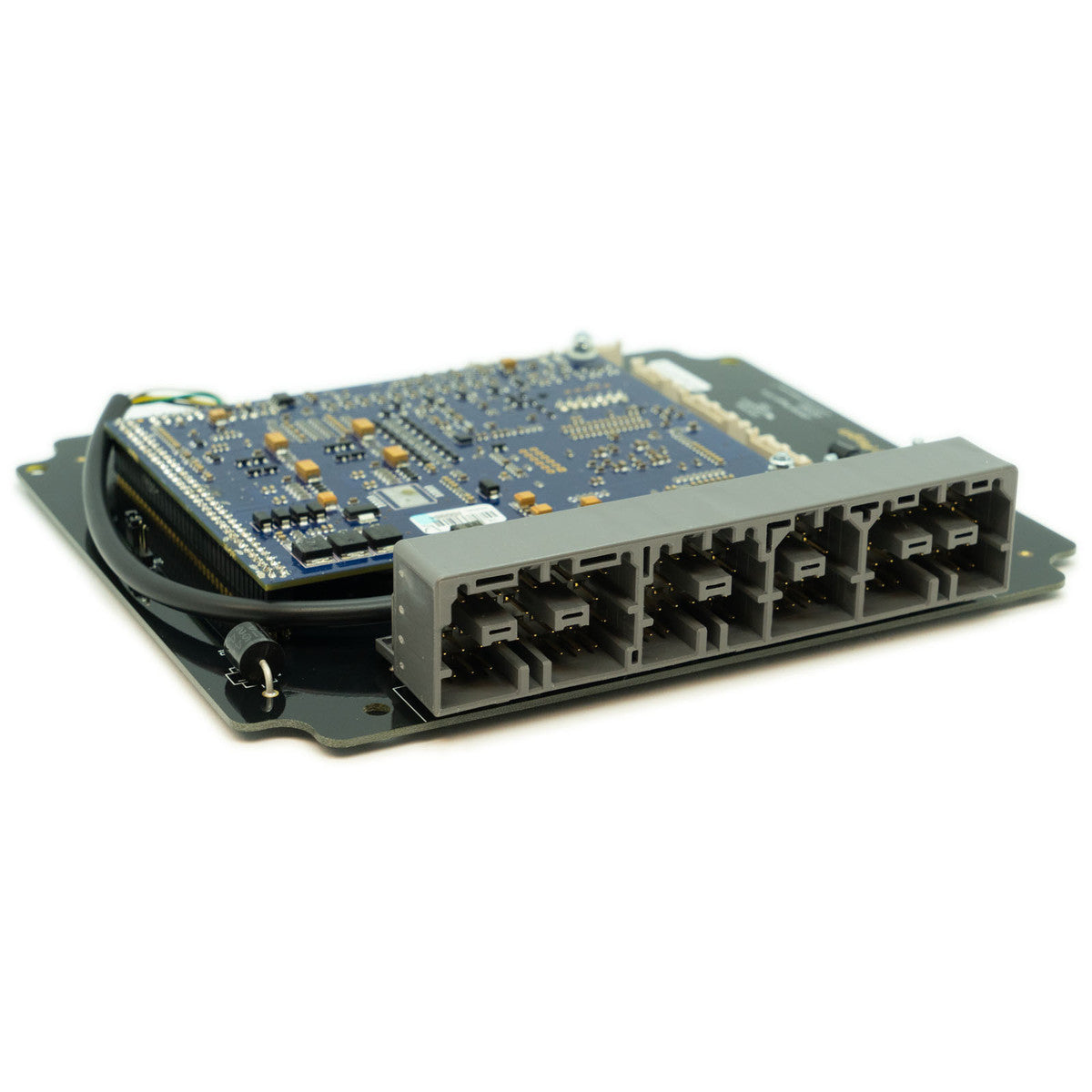

Link JZX100X Plug-In ECU (Toyota JZX100 1JZ-GTE, Gen 6) - 232-4000

The JZX100X is a G4X plug-in ECU for X100-chassis Toyotas with the VVT-i 1JZ-GTE. It fits the factory ECU location using the original mounts, loom and connectors with no rewiring or adapter looms, and ships with a startup map.

Running Link's G4X platform, it handles VVT control, flex fuel, boost control and dual closed-loop lambda, and adds motorsport functions such as launch control, anti-lag, traction control and nitrous control. A MAP sensor is built in.

Suits: Toyota Chaser X100, Mark II X100 and Cresta X100 with 1JZ-GTE VVT-i. Manual transmission.

Includes: G4X JZX100X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

  • Communications: 1 x CAN bus; LTW 6-pin USB tuning connection
  • Onboard MAP sensor
  • Onboard logging: 512 MB
  • Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 8.5 A
  • Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
  • Weight: 260 g (9.17 oz)
  • Inputs/outputs: see the JZX100X installation manual

Notes

  • Check that your connector matches the header shown in the photos before ordering.
  • An expansion connector is required before e-throttle can be used.
  • Automatic models: ask us about Direct Automatic Transmission Control.
  • Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.
