Link LS DBW Adapter Loom - 101-0304

Link LS DBW Adapter Loom - 101-0304

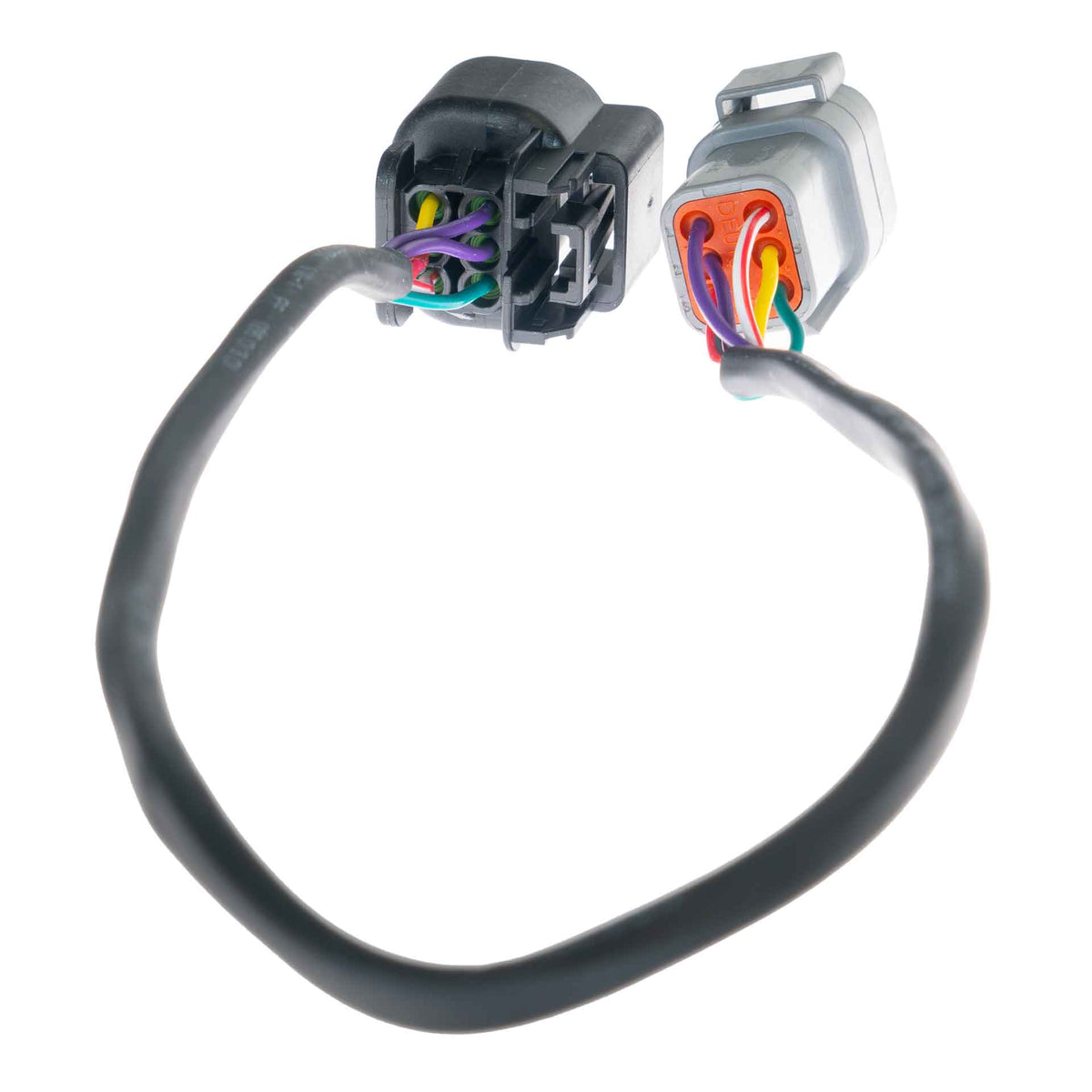

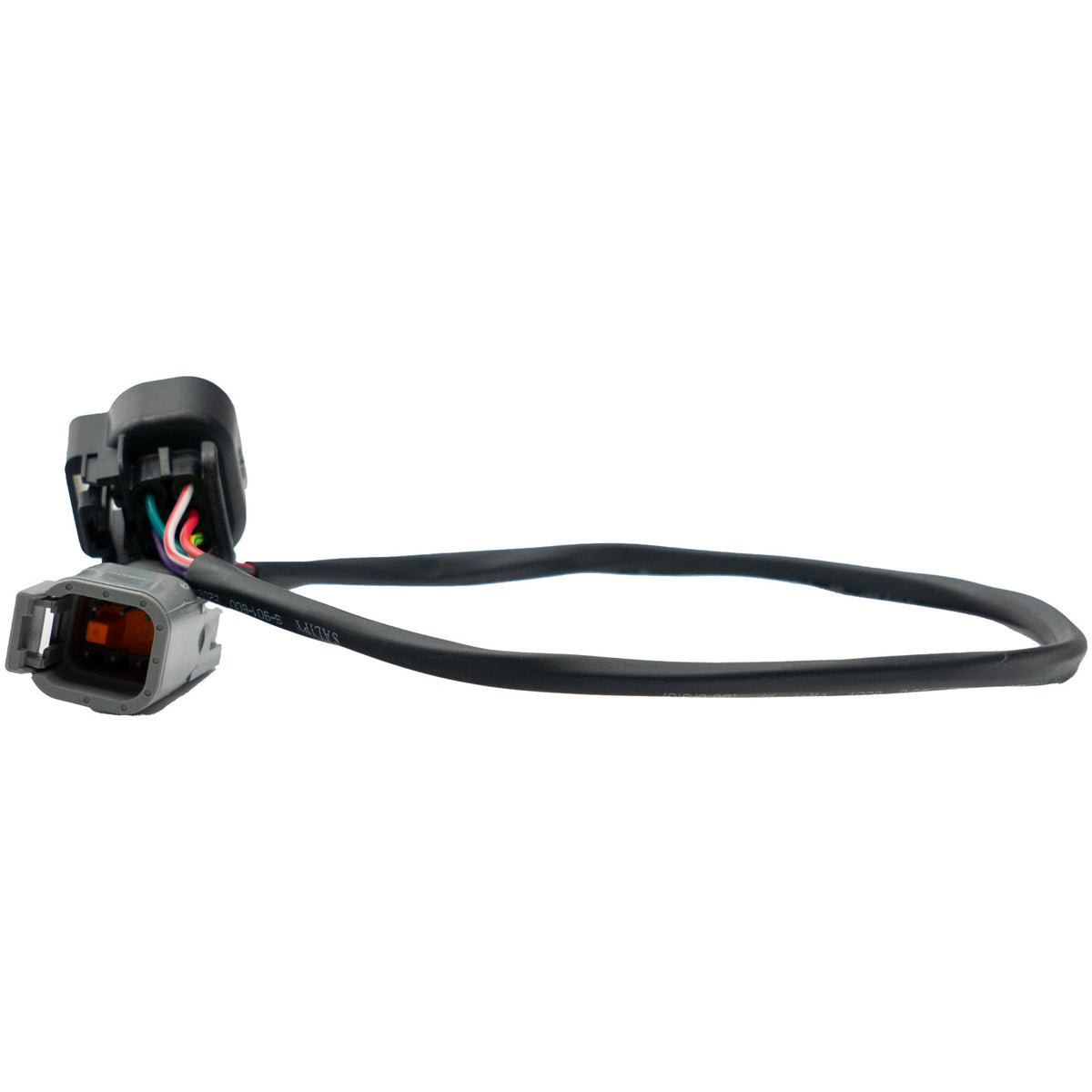

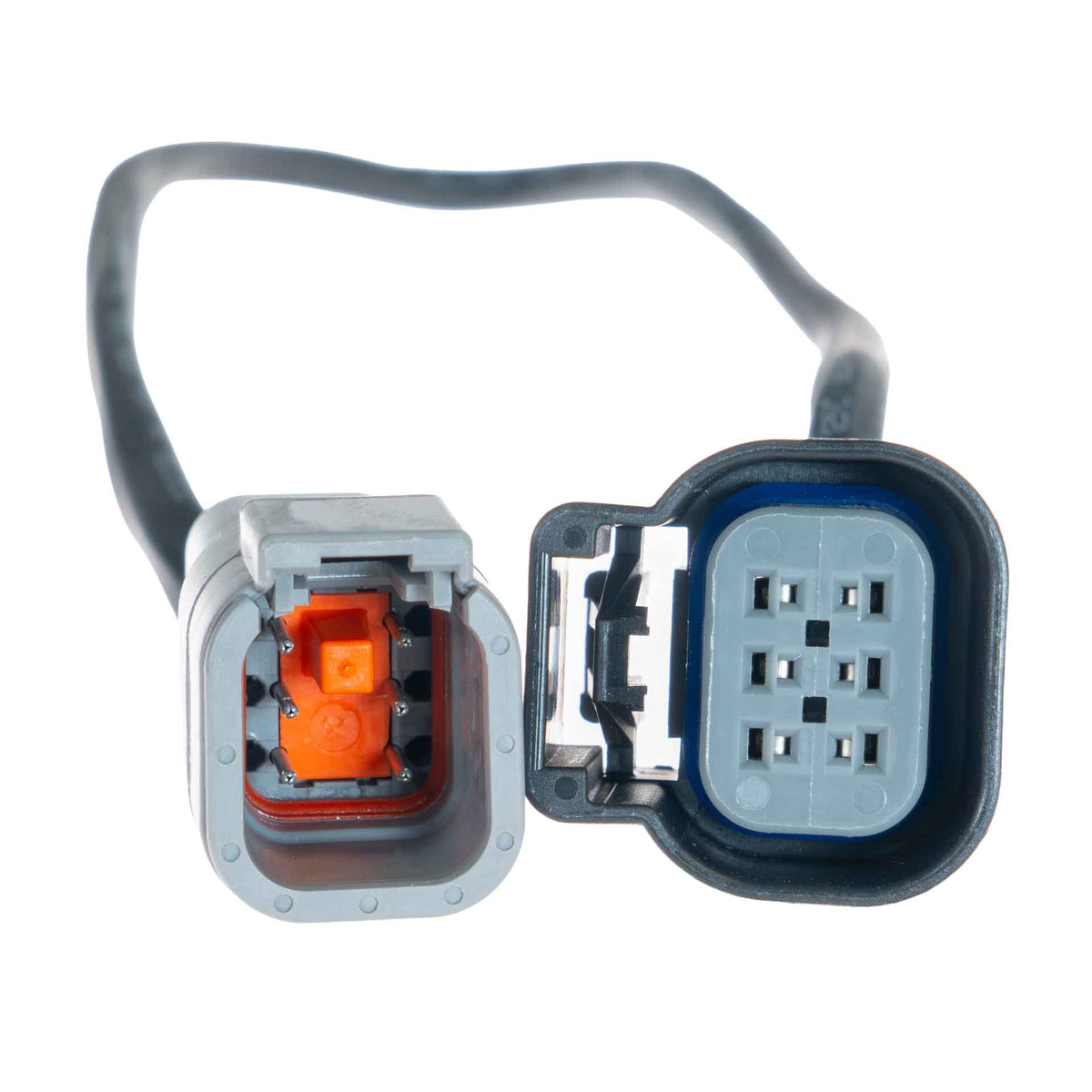

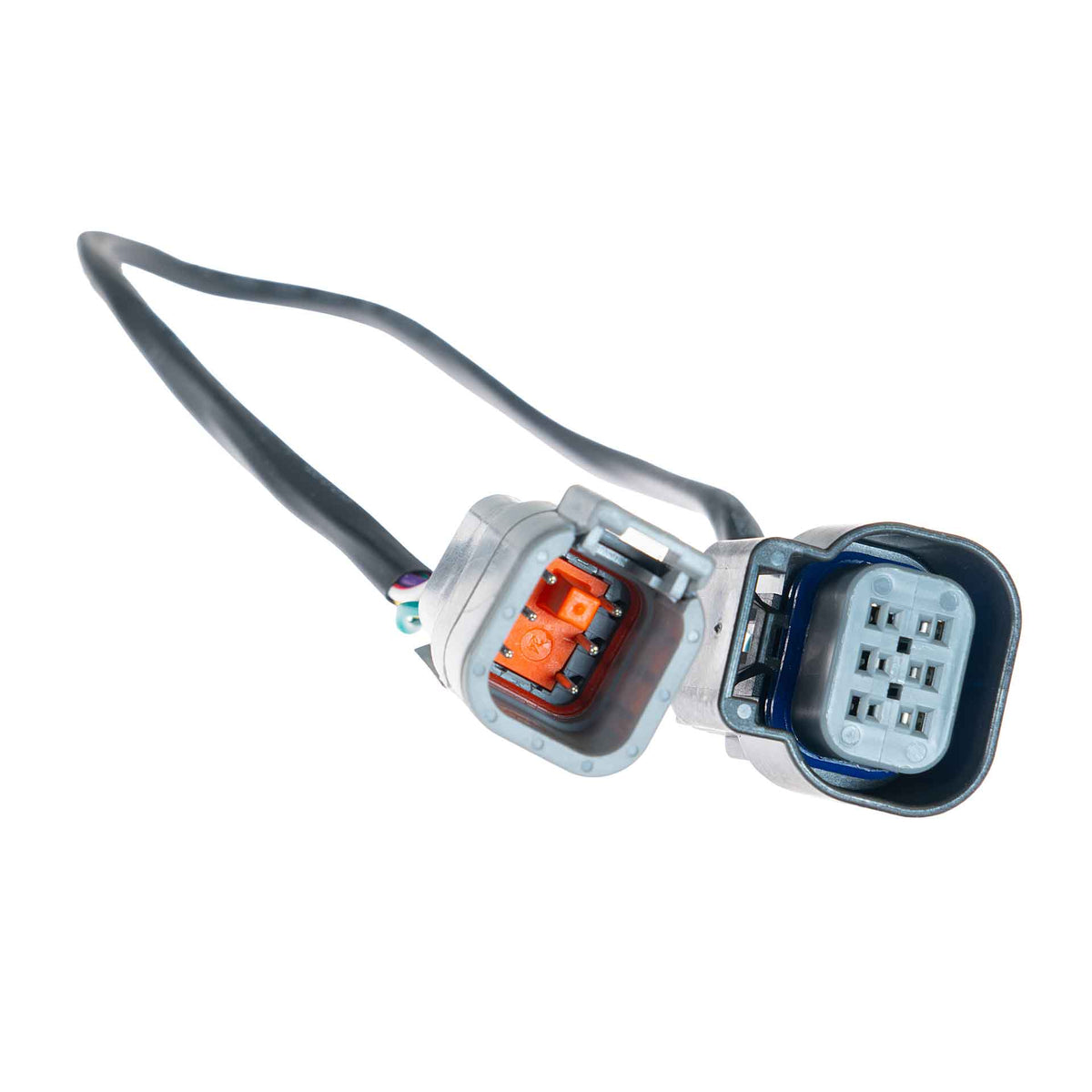

The Link LS Drive-by-Wire (DBW) Adapter Loom is a plug-and-play adapter designed to connect a factory Gen 4 GM LS Drive-by-Wire throttle body to the Link Terminated LS Engine Harness. It eliminates the need for custom wiring, providing a simple and reliable solution for Drive-by-Wire LS applications.

Suits: GM Gen 4 LS2, LS3 and LS7 engines with factory Gen 4 Drive-by-Wire throttle bodies, used with the Link Terminated LS Engine Harness (PN 101-0300) and a Link ECU with Drive-by-Wire support.

Includes: LS DBW Adapter Loom.

Specifications

• Plug-and-play adapter loom; no wiring modifications required
• Uses the pre-wired Drive-by-Wire connector on the Link LS Engine Harness
• Interfaces with Aux 9, Aux 10, AN Volt 5, AN Volt 6, 5V reference and sensor ground
• Manufactured in the USA

Notes

• Designed exclusively for use with the Link Terminated LS Engine Harness.
• Intended for Gen 4 GM Drive-by-Wire throttle bodies only. Not required for cable throttle (DBC) applications.
• Use the Link LS Stepper Adapter Harness (PN 101-0301) when using a factory GM idle air control (IAC) stepper motor.

You may also need

Link Terminated LS Engine Harness (101-0300).
