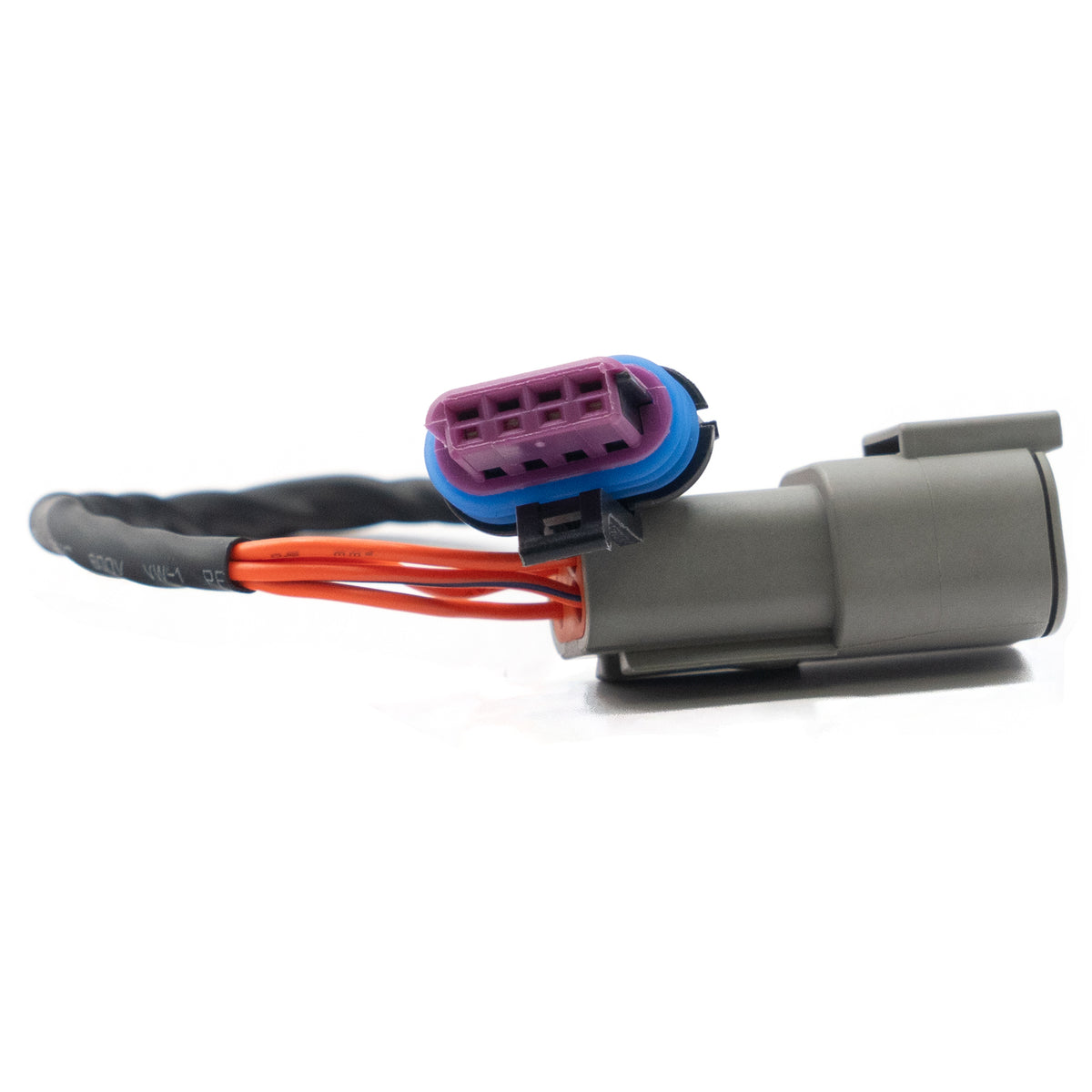

Link LS Stepper Adapter Harness - 101-0301

Details

The Link LS Stepper Adapter Harness is a plug-and-play adapter designed to connect a GM LS Idle Air Control (IAC) stepper motor to the Link Terminated LS Engine Harness. Required for cable throttle (drive-by-cable) LS applications, it connects directly to the pre-wired stepper connector on the engine harness, simplifying installation and eliminating the need for additional wiring.

Models Supported

• GM Gen 3 LS1 and LS6 engines
• GM Gen 4 LS2, LS3 and LS7 engines
• Link Terminated LS Engine Harness (PN 101-0300)
• Cable throttle (drive-by-cable) LS throttle bodies with a factory GM IAC stepper motor
• Gen 4 engines may require additional harness adapters depending on engine configuration. Refer to the LS Harness Manual.

Warnings

• Required when using the Link Terminated LS Engine Harness with a cable throttle LS engine
• Not required for drive-by-wire applications. Use the LS DBW Adapter Loom instead (101-0304)
• Designed exclusively for use with the Link Terminated LS Engine Harness

Specifications

• Highlights: Plug-and-play installation; Supports factory GM LS IAC stepper motors; Connects to the pre-wired stepper adapter connector on the Link LS Engine Harness (PN 101-0300); Interfaces with Aux 5, Aux 6, Aux 7 and Aux 8; Designed for cable throttle (drive-by-cable) LS applications; Manufactured in the USA
• Product Dimensions: 250mm(L)x25mm(W)x20mm(H); 9.84in(L)x0.98in(W)x0.79in(H)
• Product Weight: 20 grams (0.71 ounces)

What's in the Box

• LS Stepper Adapter Harness
