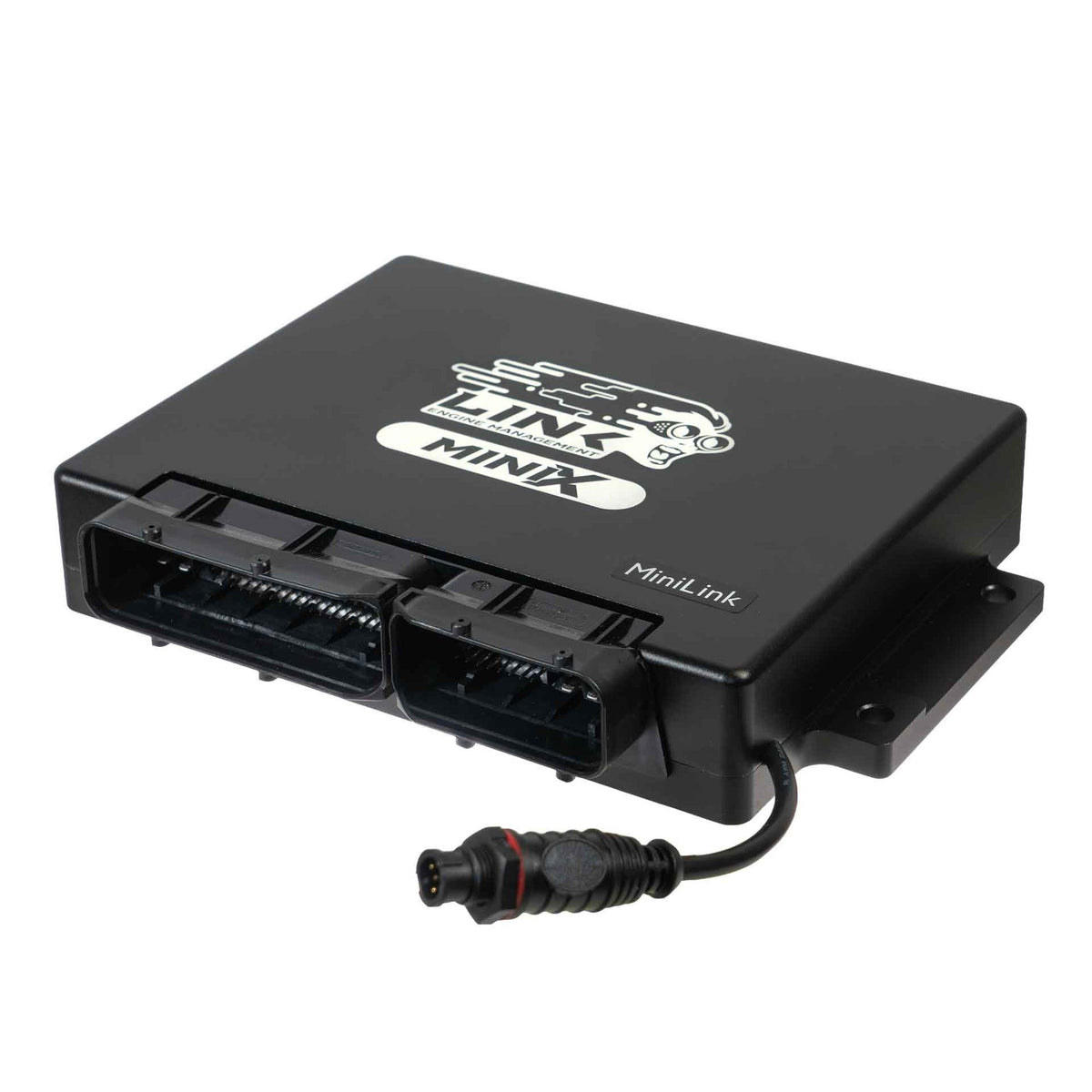

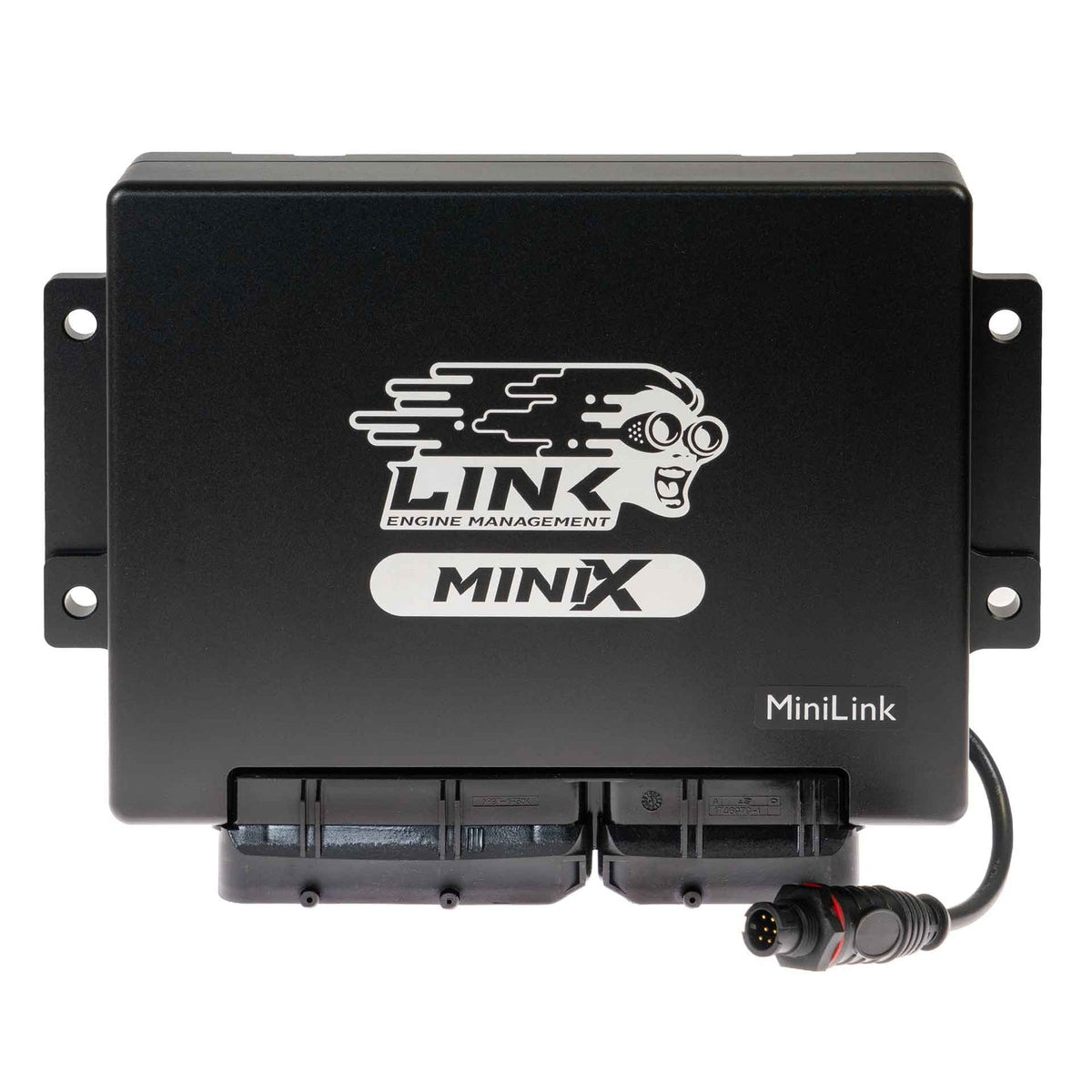

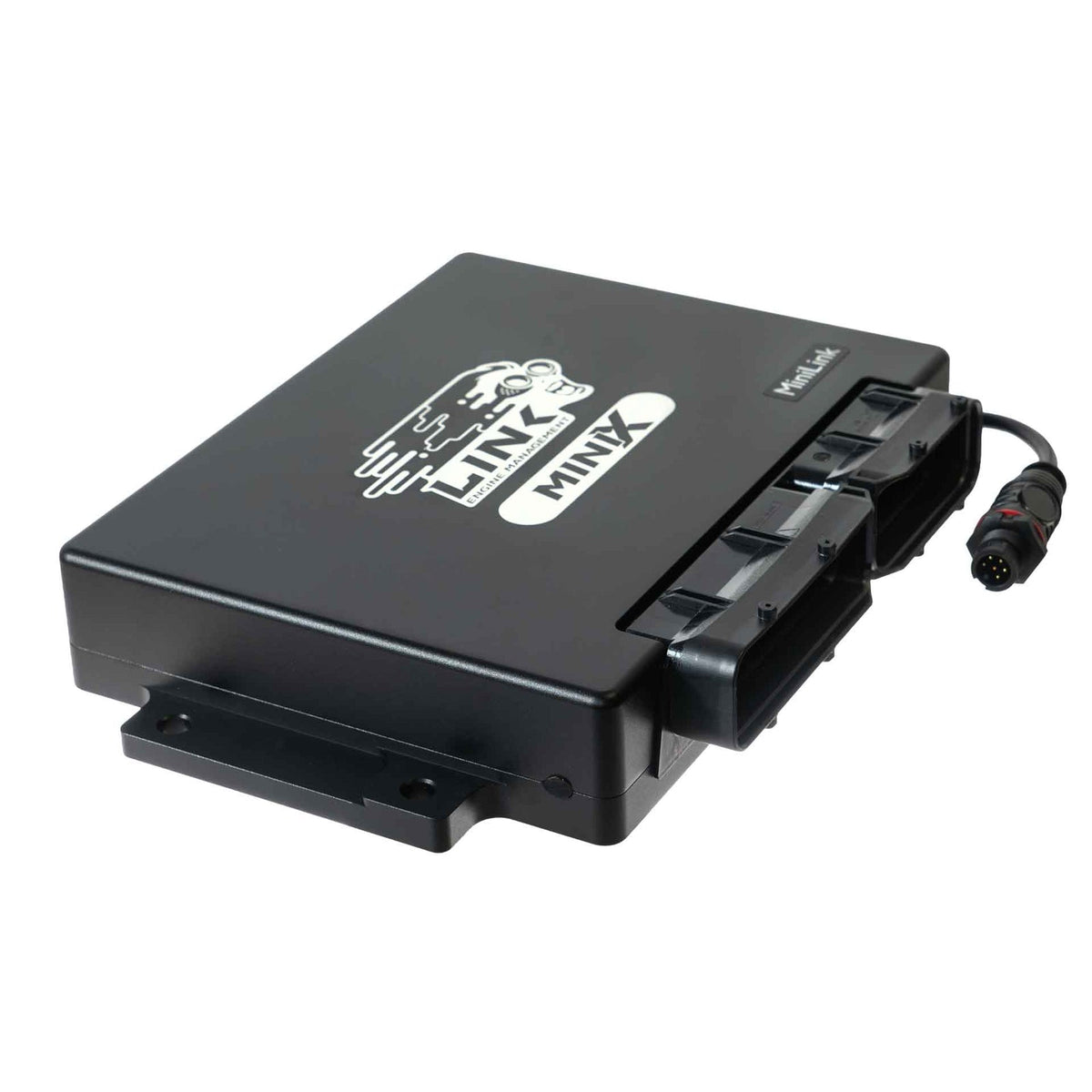

Link MiniLink - MINIX - 209-4000

Link MINIX Plug-In ECU (BMW Mini Cooper S, 2002-2006) - 209-4000

The MINIX is a G4X plug-in ECU for the R50-R53 Mini One, Cooper and Cooper S. It mounts in the factory ECU location using the original mounts, loom and connectors, keeps the factory functions and a stock look, and includes a startup map and built-in drive-by-wire (e-throttle) control.

Motorsport functions include nitrous, launch control, anti-lag, cruise and traction control, race timer/power management, and gear and paddle shift control.

Suits: R50 and R52 Mini with 1.6 Tritec; R52 and R53 Mini with 1.6 Tritec SC (supercharged). Manual transmission only.

Includes: G4X MINIX plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

• Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
• Built-in e-throttle (drive-by-wire)
• Onboard logging: 512 MB
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 10 A
• Dimensions: 190 x 155 x 40 mm (7.48 x 6.10 x 1.57 in)
• Weight: 960 g (33.86 oz)
• Inputs/outputs: see the MINIX installation manual

Notes

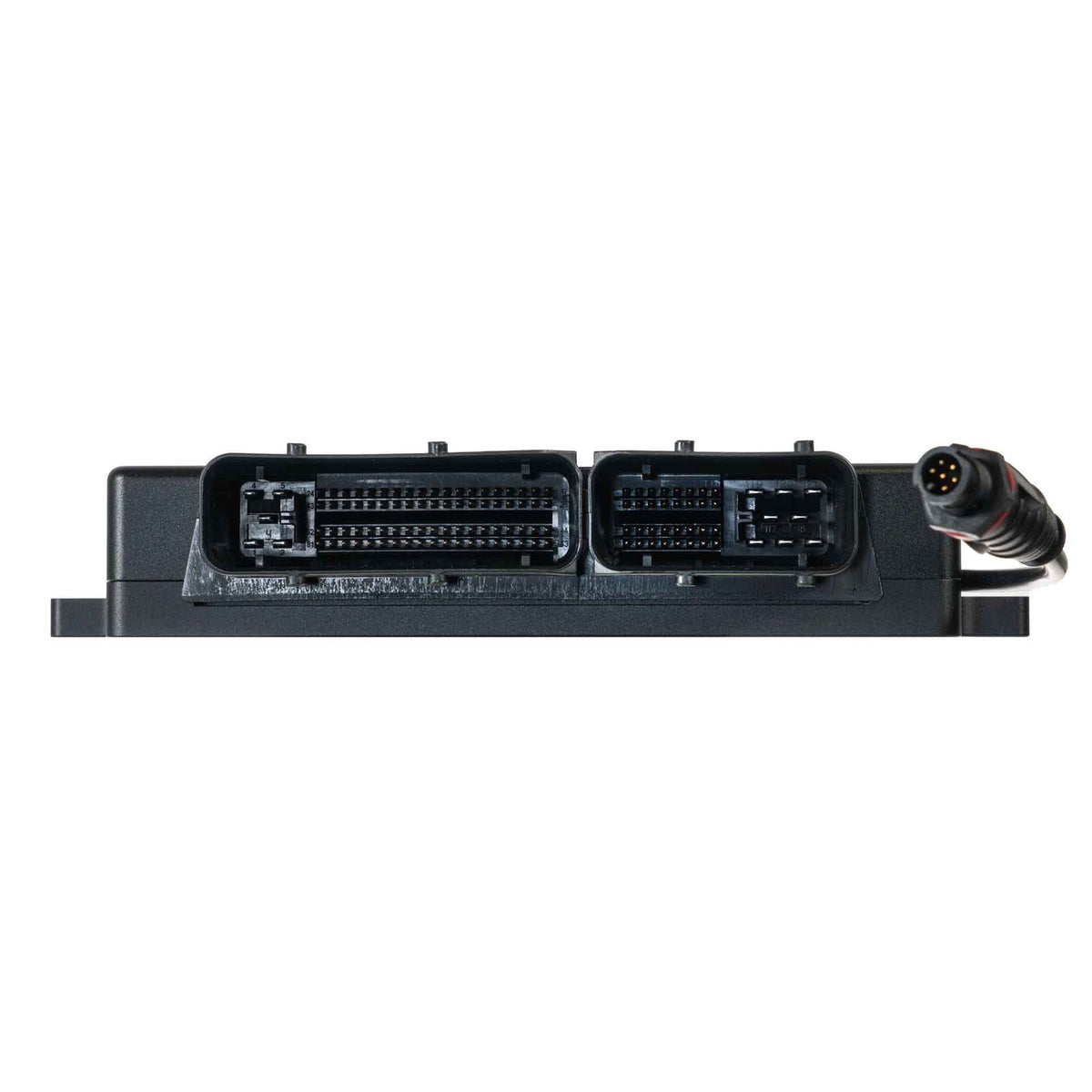

• Check that your connector matches the header shown in the photos before ordering.
• Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

Downloads

• MINIX User Manual (PDF)
• G4X Plug-In ECU Specifications (PDF)
