Link MIPS 150PSI Pressure Sensor 1/8 NPT - 101-0325

Link MIPS 150PSI Pressure Sensor 1/8 NPT - 101-0325

A media-isolated Honeywell MIP Series pressure transducer in a rugged stainless steel body. It is built for monitoring fuel, oil, coolant and other compatible fluid pressures in motorsport and performance applications, and outputs a ratiometric 0.5-4.5 V signal any analogue ECU input can read.

Suits: All Link ECUs, plus other aftermarket ECUs with analogue pressure sensor inputs.

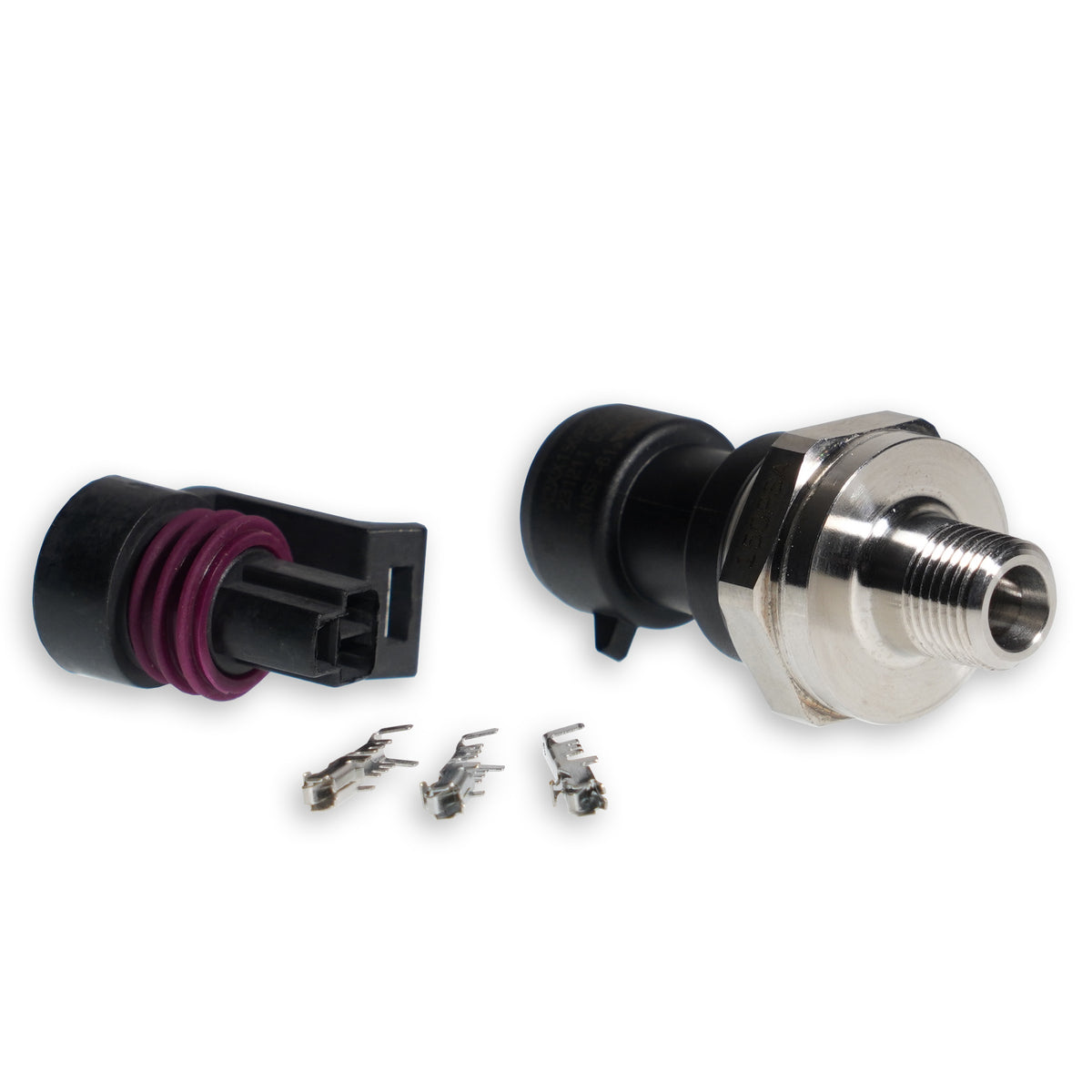

Includes: MIPS 150PSI pressure sensor, 3-way Metri-Pack 150 connector kit (101-0130), printed accessory instructions.

Specifications

• Genuine Honeywell MIP Series sensor, media-isolated sensing element, stainless steel construction
• Pressure range: 0 to 150 psi
• Thread: 1/8"-27 NPT male, 22 mm hex
• Output: ratiometric 0.5 V to 4.5 V analogue
• Supply: 5 V (4.75-5.25 V); maximum input voltage 40 V; maximum continuous current draw 7.5 mA
• Operating temperature: -40°C to +125°C
• Suitable media: oil, petrol, ethanol, diesel, coolant, water
• PCLink calibration name: 1000 kPa (150 PSI) TI Sensor
• Raw calibration: 0.5 V = 0 kPa, 4.5 V = 1034.21 kPa
• Connector: 3-way Metri-Pack 150
• Dimensions: 45 x 25 x 25 mm (1.77 x 0.98 x 0.98 in)
• Weight: 25 g (0.88 oz)

Notes

• Requires a regulated 5 V sensor supply from the ECU.
• Install with a thread sealant suitable for the application.
• Confirm the 150 psi range suits the system being monitored.
• Link recommends installation and setup by an official Link dealer.

Downloads

• MIPS 150PSI Sensor Pinout (PDF)
