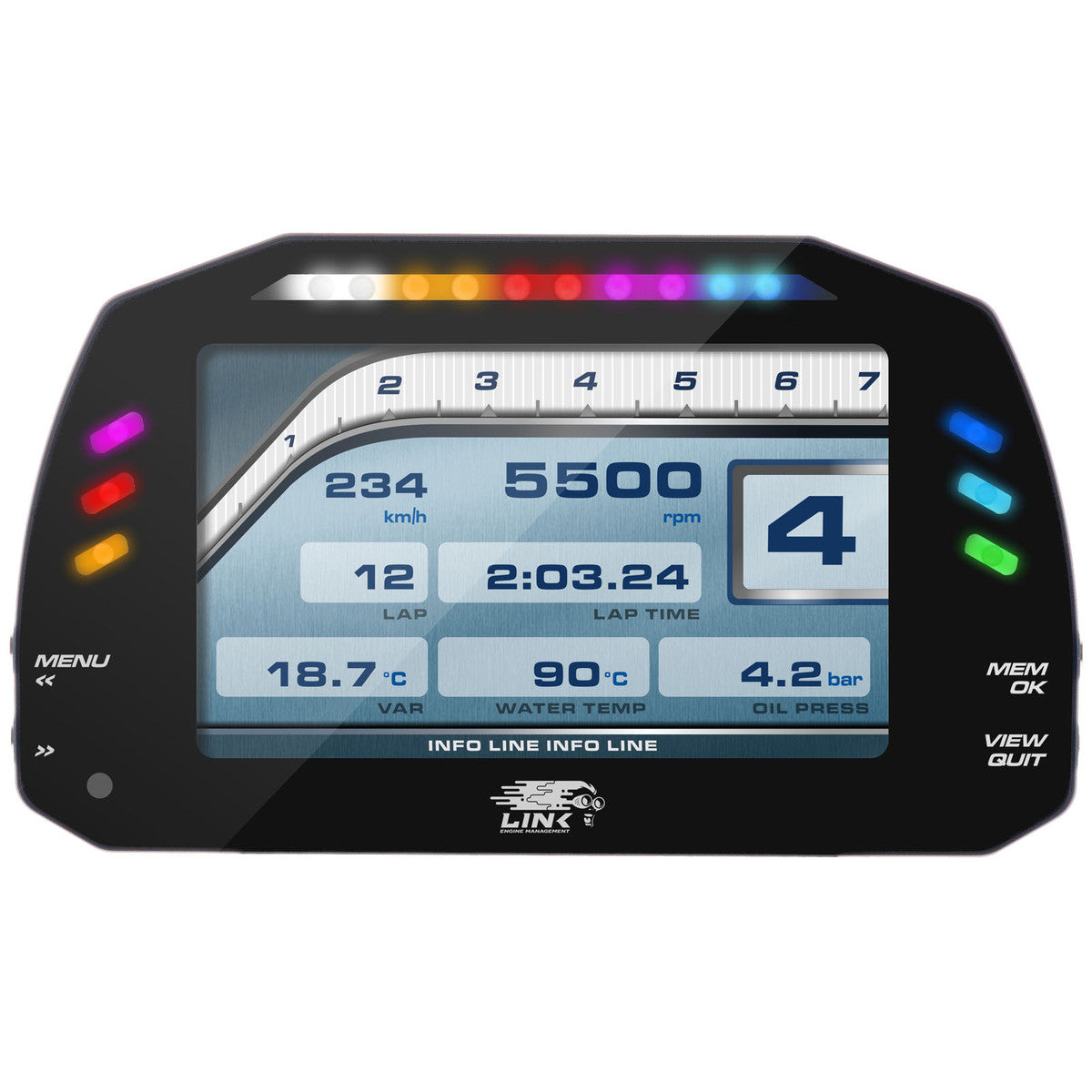

LINK MXS Strada 5" Dash - Race Edition 100-0169

Details

The Link / AiM MXS Strada 5 inch Display provides the data you need, when you need it, through a clear, easy-to-read display helping you stay informed and focused whether cruising on the road or pushing for lap times. Featuring a high-contrast 5 inch TFT screen with automatic brightness adjustment, the MXS Strada provides excellent visibility in all lighting conditions. Multiple configurable display pages allow drivers to prioritise the information most important to them, while ten configurable RGB shift lights, a custom warning screen and six warning LEDs all work together to ensure important alerts capture your attention, allowing you to react quickly and confidently. Each display is pre-loaded to accept the Link ECU CAN Stream, simplifying set-up. Simply enable the dash in the free PC Link software and the system communicates instantly, delivering accurate real-time data. The AiM MXS Strada 5" Display is the ideal solution for people who want real-time vehicle data, customisable warning alerts, clear shift lights, configurable layouts and seamless Link ECU integration in a compact package.

Models Supported

• The AiM MXS Strada 5 inch display is pre-configured to work with all Link G4+/G4X/G5 Wire-in and Plug-in ECU's.

Warnings

• This listing is for the 'Race edition', please see the 'Street edition' if you are looking for a dash for street purposes. The Strada dash is also available in 7-inch (MXG) and 10-inch (MXT) versions.

Features

• 5" high-contrast TFT display
• 800 × 480 pixel resolution
• Automatic brightness adjustment via ambient light sensor
• 10 freely configurable RGB shift lights
• 6 freely configurable RGB warning LEDs
• Multiple configurable display pages and layouts
• Dual CAN connections
• Compatible with CAN, RS232 and K-Line ECU communications
• Compatible with a range of ECUs including Link ECUs
• Seamless Link ECU CAN integration
• Supports AiM CAN accessories including GPS, Channel Expansion, TC Hub, Lambda Controller and SmartyCam HD
• 4 fully configurable analogue inputs (up to 1 kHz each)
• Dedicated speed input and coil RPM input
• Configurable digital output

Specifications

• Screen Display: 5" Thin-Film Transistor (TFT); 800 × 480 pixels; 600:1 contrast ratio; 700 cd/m² brightness (1,100 Lumens); 2 CAN ports; 8 analogue inputs; 1 speed input, 1 coil RPM input digital inputs; 1 digital output (1A max); 2 AMPSEAL connectors; 400 mA power consumption
• Product Dimensions: 169.4mm(L) x 97mm(W) x 23mm(H) / 6.67in(L) × 3.82in(W) × 0.91in(H)
• Product Weight: 480 grams (16.93 ounces)
• Material: Anodised Aluminium with Metallic Pushbuttons
• Electrical: Maximum Continuous Current Draw: 400mA
• Misc.: IP65 rated

What's in the Box

• Link MXS Strada 5" Race Edition Display
• USB cable
• 14 pin standard wiring
• 23 pin connector + contacts
