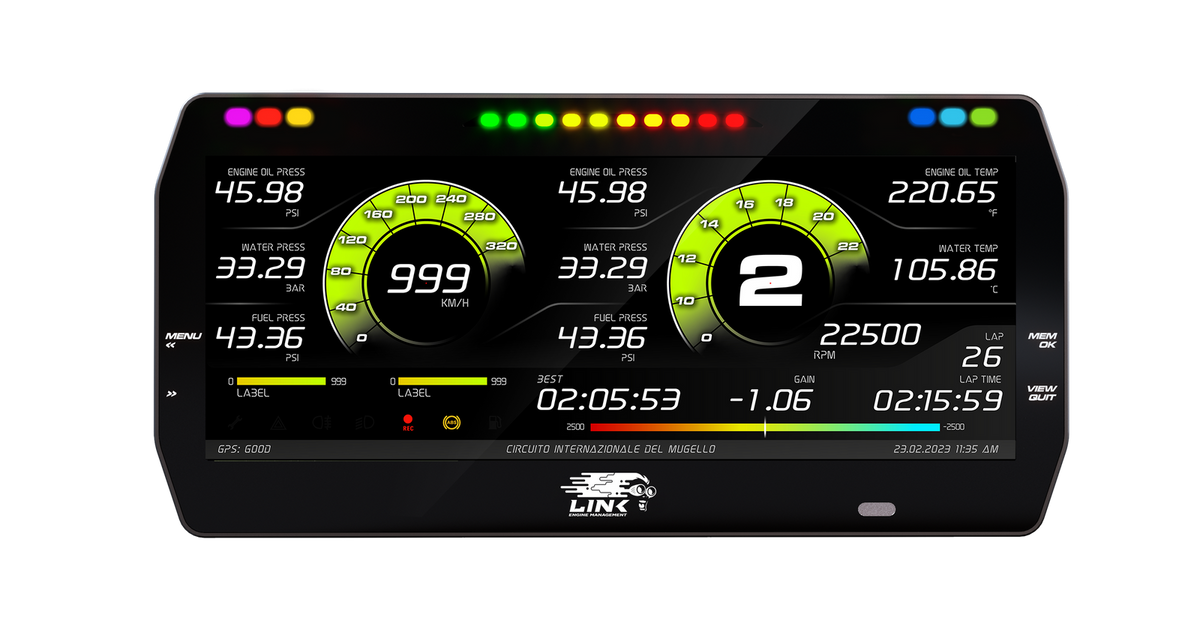

Link MXT Strada 10-inch Dash - Race Edition - 100-0177

Link AiM MXT Strada 10" Dash - Race Edition - 100-0177

The MXT Strada is AiM's largest Strada dash, with a 10-inch, 1280 x 480 high-contrast TFT that shows the most data on one screen. Brightness adjusts automatically, and you get multiple configurable pages, 10 RGB shift lights, 6 RGB warning LEDs and a custom warning screen. It comes pre-loaded to read the Link ECU CAN stream: enable the dash in PCLink and it is ready to go.

The Race Edition's six RGB icons beside the screen are fully configurable by condition and colour, solid or flashing at an adjustable rate. For road cars, see the Street Edition (100-0176).

Suits: All Link G4+, G4X and G5 wire-in and plug-in ECUs; also CAN, RS232 and K-Line ECU communications and AiM CAN accessories.

Includes: MXT Strada 10" Race Edition display, USB cable, 14-pin standard wiring, 23-pin connector and contacts.

Specifications

• Display: 10" TFT, 1,280 x 480 pixels, 1,100:1 contrast, 800 cd/m2 (1,100 lumens)
• Inputs: 8 analogue (up to 1 kHz each), 1 speed input, 1 coil RPM input
• Outputs: 1 digital output (1 A max)
• CAN ports: 3
• Connectors: 2 AMPSEAL (3-row 23-position 770680-1; 3-row 14-position 776273-2) + 1 Binder
• Maximum continuous current draw: 450 mA
• Housing: anodised aluminium with metallic pushbuttons, IP67
• Dimensions: 278 x 135 x 43.2 mm (10.95 x 5.31 x 1.70 in)
• Weight: 1,100 g (38.80 oz)

Notes

• This is the Race Edition; for road use choose the Street Edition. The Strada is also available as the 5" MXS and 7" MXG.
• Link recommends installation and setup by an official Link dealer.

You may also need

Street version: MXT Strada 10" Street Edition (100-0176).

Downloads

• AiM MXT Strada Quick Start Guide (PDF)
