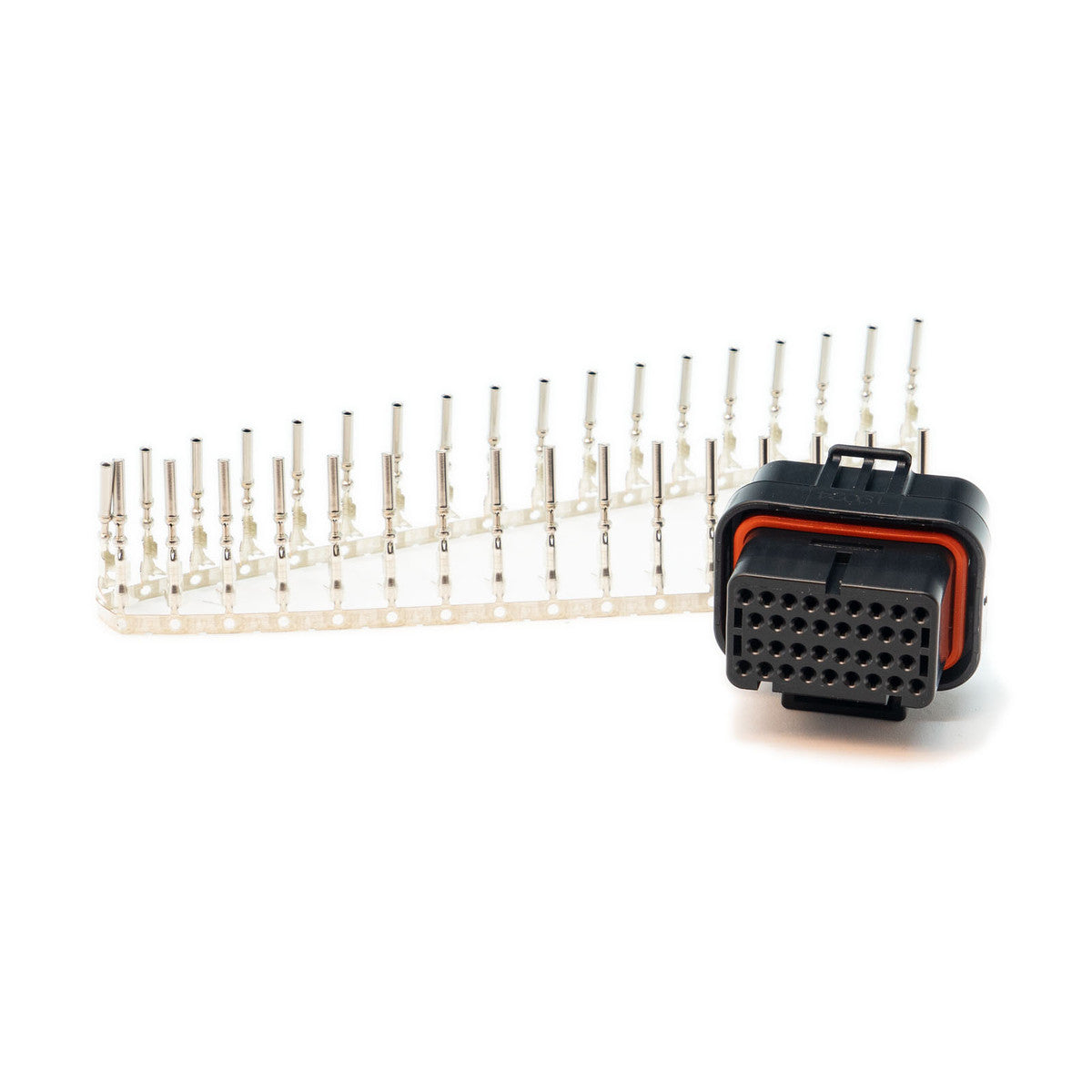

LINK Pin Kit A (TKA) 101-0096

Genuine Link Plug & Pin Kit A (TKA) for Link Wire-in ECUs. Includes the 34 pin A connector housing and terminals, making it ideal for custom wiring looms or replacing a damaged ECU connector.

Models Supported

• Link G5 Voodoo Pro (Loom A/Pin Kit A also required)
• Link G5 Neo 4 (Loom A/Pin Kit A also required)
• Link G5 Neo 6 (Loom A/Pin Kit A also required)
• All Link G4X Wire-in ECU's (Note: Loom B/Pin Kit B will also be required for the Storm/Fury/Xtreme)
• Link G4+ Atom. Does NOT suit the earlier G4 Atom models.
• Link G4+ Atom II
• Link G4+ Monsoon
• Link G4 Storm
• Link G4+ Storm Blue
• Link G4+ Storm Black (Note: Loom B/Pin Kit B will also be required)
• Link G4 RX
• Link G4+ Fury (Note: Loom B/Pin Kit B will also be required)
• Link G4 Xtreme (Note: Loom B/Pin Kit B will also be required)
• Link G4+ Xtreme (Note: Loom B/Pin Kit B will also be required)
• Link G4+ Thunder (Note: Loom B/Pin Kit B and connector kits C and D may also be required)
• Vipec V44
• Vipec i44
• Vipec V88 (Note: Loom B/Pin Kit B will also be required)
• Vipec i88 (Note: Loom B/Pin Kit B will also be required)

Features

• Genuine Link ECU part
• Includes connector housing and terminals
• Ideal for new looms and wiring repairs
• Suits a wide range of Link and Vi-PEC ECUs

Specifications

• Product Dimensions: 35mm(L)x35mm(W)x35mm(H) / 1.38in(L)x1.38in(W)x1.38in(H)
• Product Weight: 30 grams (1.06 ounces)
• Electrical: Operating Voltage Range: 6-18V; Maximum Input Voltage: 250V; Maximum Continuous Current Draw: 3-15A; Gauges of wire: 22AWG/0.3mm2 - 16AWG/1.25mm2
• What's in the Box: Connector Key 1 G4A, Superseal terminal PN 101-0090
