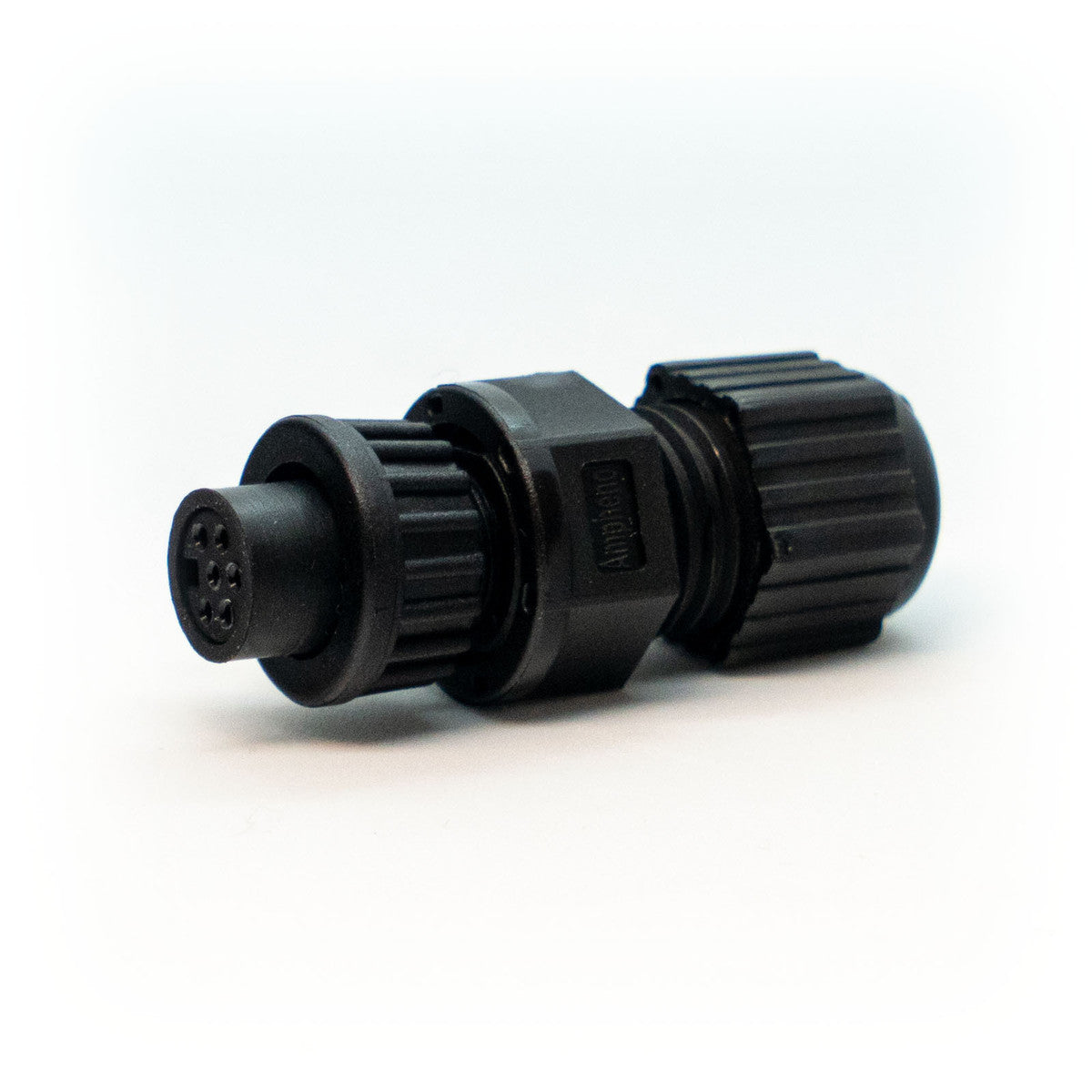

LINK Plug (CANF) 101-0020

Field Installable CAN Plug

For custom wiring solutions and motorsport configurations to connect dash units, wideband controllers, or other CAN devices.

Models Supported

Intended for wiring into the 6-pin CAN port on Link G4/G4+/G4X ECUs that have a round 6 pin CAN communication port.

Warnings

Requires soldering for assembly.

Specifications

• Product Dimensions: 45mm(L)x20mm(W)x20mm(H) / 1.77in(L)x0.79in(W)x0.79in(H)
• Product Weight: 5 grams (0.18 ounces)
• Electrical: Maximum Input Voltage: 500V / Maximum Continuous Current Draw: 2A / Gauges of wire: 26-24 AWG/0.14-0.25mm2
• What's in the Box: Field installable CAN plug / Printed Accessory instructions
