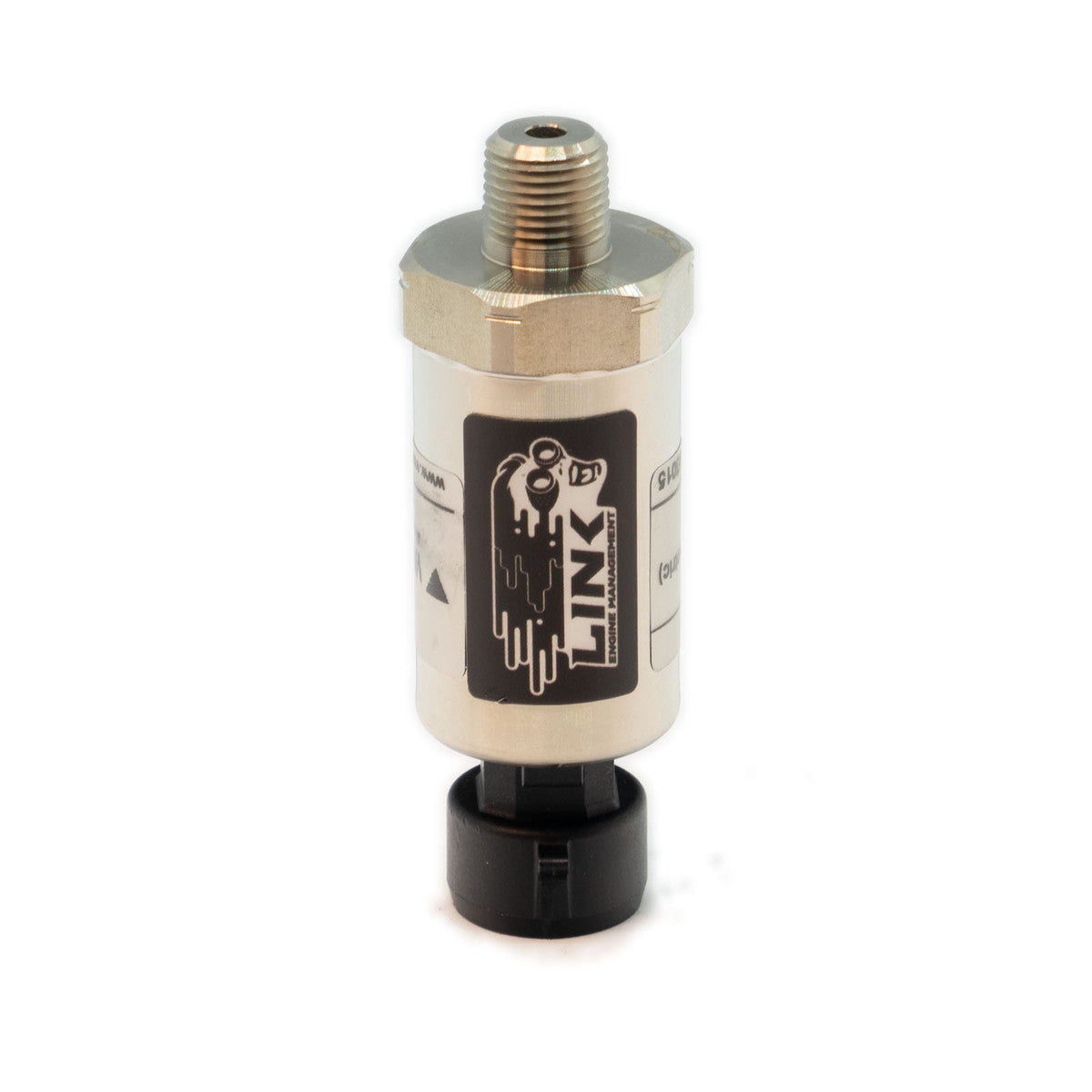

LINK Pressure Sensor (PS150) 101-0326

The Link PS150 Pressure Sensor is a compact, high-accuracy pressure sensor designed for demanding motorsport and automotive applications. Featuring a robust stainless steel construction and excellent resistance to vibration, shock and harsh operating environments, it provides reliable pressure measurement for fuel, oil, coolant, air and other compatible fluids. It delivers a 0.5-4.5V ratiometric output, making it ideal for use with Link ECUs and other aftermarket engine management systems.

Models Supported

All Link ECUs. Other aftermarket ECUs with a 0.5-4.5V analogue input.

Warnings

Designed for use with a regulated 5V sensor supply. Compatible with fuel, oil, coolant, air and other compatible media. Ensure the correct pressure range is selected for your application.

Specifications

The Link PS150 Pressure Sensor has the following specifications:

• Pressure range: 0-150 psi (0-10 bar)
• 0.5-4.5V ratiometric output
• 5V supply voltage
• Stainless steel sensing element and housing
• High accuracy (+/-0.5% full scale at 25degC)
• Long-term stability of <=0.1% full scale per year
• 1ms response time
• Excellent vibration and shock resistance
• Operating temperature: -40degC to +125degC
• IP67-rated (connector dependent)
• Packard Metri-Pack electrical connector
• 1/4"-18 NPT male pressure port
• Product Dimensions: 50mm(L)x25mm(W)x25mm(H), 1.97in(L)x0.98in(W)x0.98in(H)
• Product Weight: 50 grams (1.76 ounces)
• Electrical: Operating Voltage Range: 5V, Maximum Input Voltage: 5V
• What's in the Box: PS150 Pressure Sensor, TI Sensor Connector Kit, Printed Accessory instructions
• PCLink Calibration Name: Bosch 10 Bar 0 261 230 340
• Raw Calibration Specs: 0.5V = 0kPa, 4.5V = 1000kPa
• Connector: TI Sensor Connector Kit 101-0130
