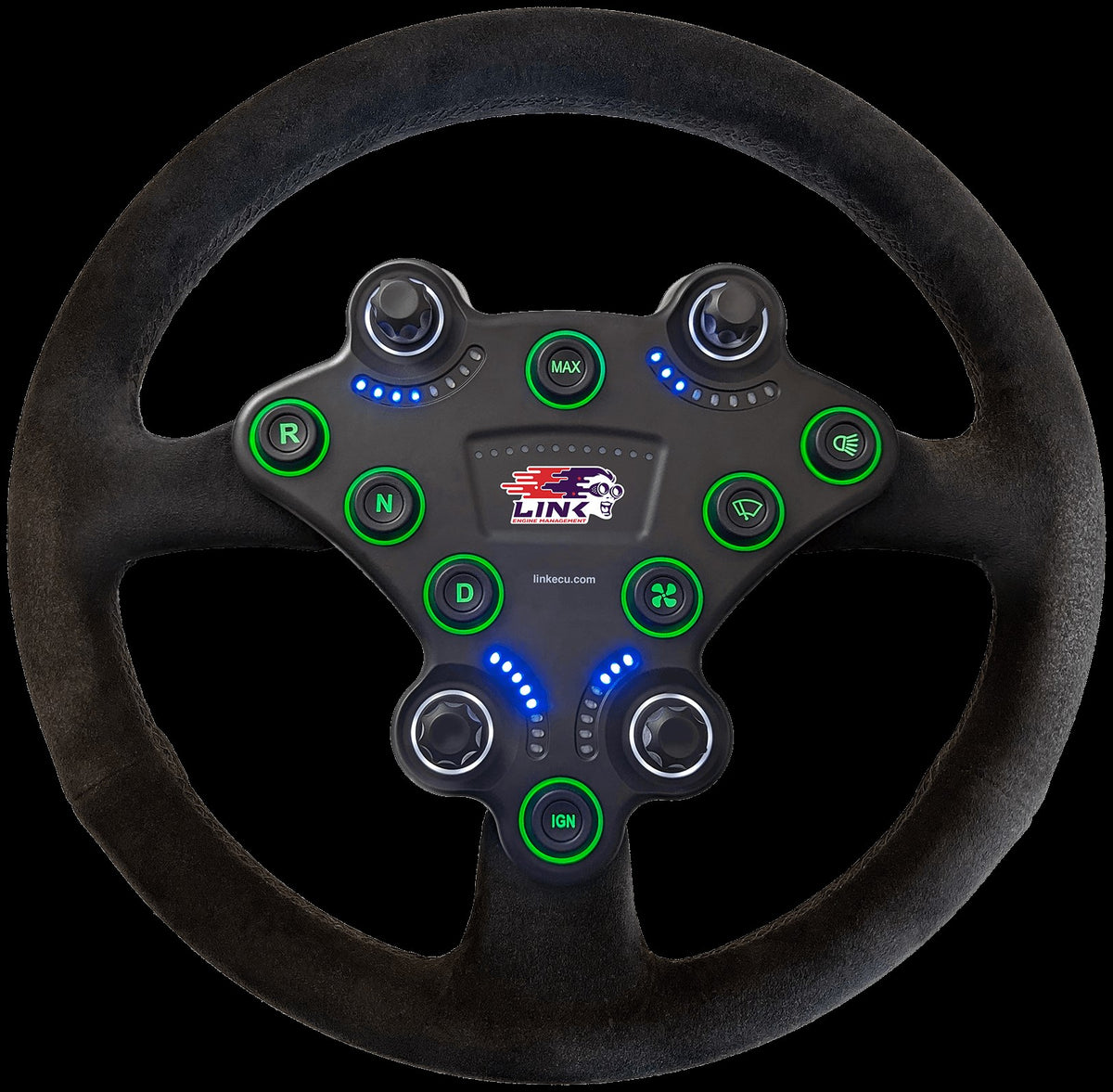

Link RACEPAD - Steering Wheel CAN Keypad - 101-0332

RacePad is the ultimate CAN-bus steering wheel button panel designed to elevate your racing experience to the next level.

With 4 rotary knobs and 8 easy-to-reach buttons, RacePad is the ideal addition to any race car, enabling both professional drivers and amateurs to fully customize their driving style thanks to individualized button icons and LED colour selection.

Details

• Models Supported: Compatible with all G4X and G5 ECUs
• Warnings: Racepad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included loose in box.

Features

• 8 Backlit Buttons and 4 Rotary Knobs
• 4 Analogue Inputs for additional Sensors or Switches
• CAN Configurable with G4X/G5 PC Link – Change button LED backlight colour, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.
• 8 Blue LED Lights on Rotary Encoders while all 8 Pushbuttons have customisable RGB LED Rings
• CAN Bus Communication back to Engine Management System
• Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical
• 12 Fixed LEDs in centre can be used for configurable feedback – RPM etc.
• Includes mounting plate adapter to support common aftermarket steering wheel bolt patterns including MOMO (6x70mm) and Nardi (6x74 mm)
• DTM4 Connector for CAN and Power, Molex Connector for Analog Inputs

Specifications

• Switch Life: 3 million operations
• Default Baud Rate: 1000kbit/s
• Chemical Resistance: Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
• UV Protection: UVB 400 hours
• Product Dimensions: 20x19x7cm
• Product Weight: 425g
• Thickness: 36.2mm excluding knob height
• Electrical: Operating Voltage Range: 8-32V; Maximum Input Voltage: 32V; Maximum Continuous Current Draw: <50mA
• Connector: TE Connectivity Deutsch DTM 4-pin and Molex 6-pin 101-0156 (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low)

What's in the Box

• Blink Racepad 8 button + DTM4
• Keypad Help Manual Card
• CAN Keypad Insert - Link
• Link sticker - Right facing - Clear Gloss - Rectangle 150x72
• Deutsch 4 way Connector Kit
