Link RX7Link (S6) - RX7S6X - 218-4000

Part Number: 218-4000
Authorized Link ECU Dealer Ships from Calgary
Link Black Friday Sale: long ETA We place our Link sale order after the sale ends on Nov 30. Sale orders usually arrive in Calgary in early 2027. Need it sooner? Contact us before you order. support@boostfactory.ca

Warehouse Icon Inventory Location: Manufacturer Warehouse USA

Stock: 0

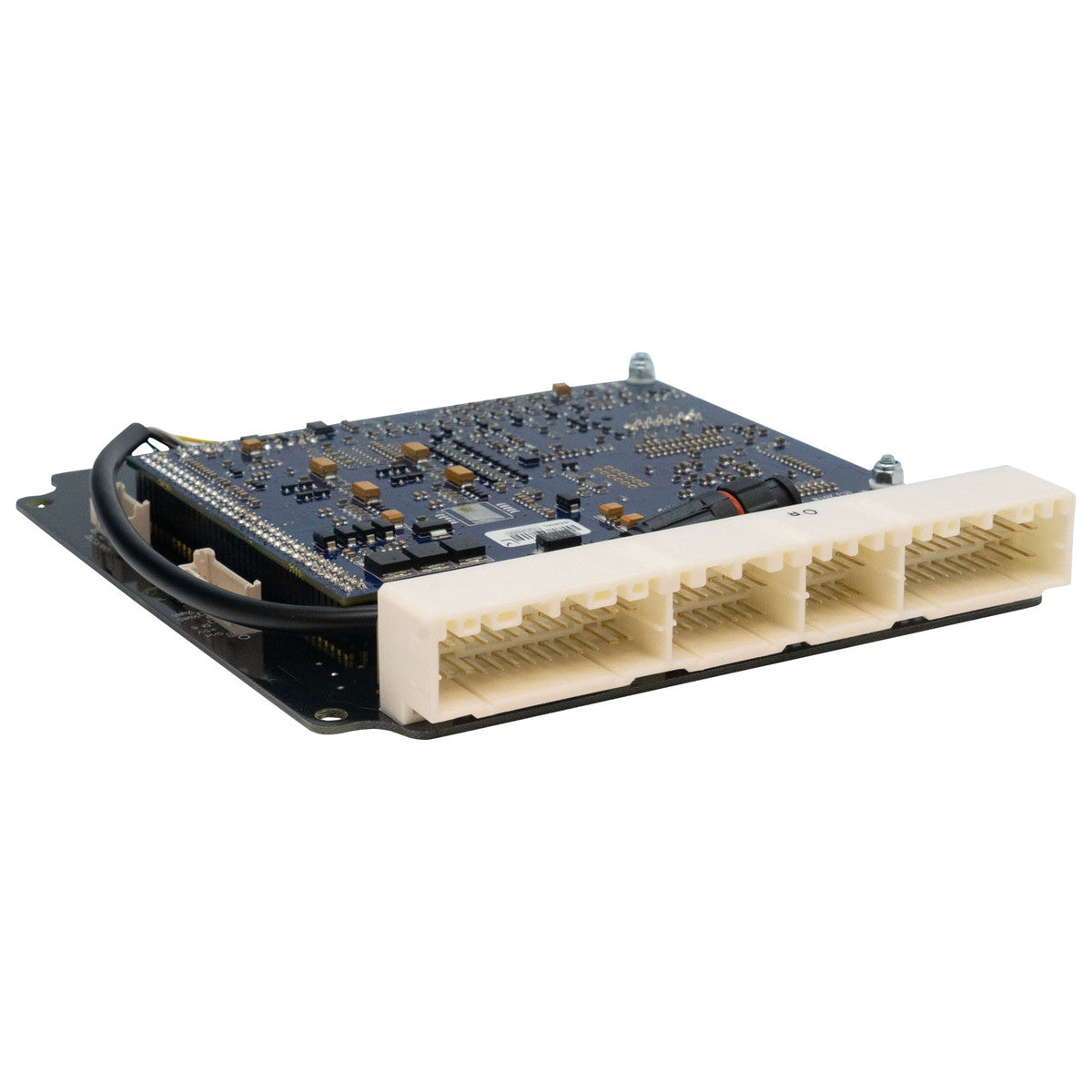

Link RX7S6X Plug-In ECU (Mazda RX-7 Series 6) - 218-4000

The RX7S6X is a G4X plug-in ECU for the Series 6 FD3S RX-7 with the 13B-REW rotary. It mounts in the factory ECU location using the original mounts, loom and connectors with no rewiring or adapter looms, and includes a startup map.

It supports naturally aspirated, parallel twin-turbo and single-turbo setups through Link's G4X platform and PCLink software.

Suits: Mazda FD3S RX-7 Series 6 with 13B-REW. Manual transmission only.

Includes: G4X RX7S6X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

  • Communications: 1 x CAN bus; LTW 6-pin USB tuning connection
  • Onboard logging: 512 MB
  • Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 500 mA
  • Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
  • Weight: 260 g (9.17 oz)
  • Inputs/outputs: see the RX7S6X installation manual

Notes

  • Check that your connector matches the header shown in the photos before ordering. Series 7-8 cars use the RX7S7X (219-4000).
  • Sequential control of the factory twin turbos is not supported.
  • E-throttle is not usable until the ECU is modified.
  • Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.
