Sale price $2,780.99 -10% Black FridaySale Regular price $3,089.99
Regular price $2,780.99

Link SupraLink - TS2JZX - 211-4000

Part Number: 211-4000
Authorized Link ECU Dealer Ships from Calgary
Link Black Friday Sale: long ETA We place our Link sale order after the sale ends on Nov 30. Sale orders usually arrive in Calgary in early 2027. Need it sooner? Contact us before you order. support@boostfactory.ca

Warehouse Icon Inventory Location: Manufacturer Warehouse USA

Stock: 0

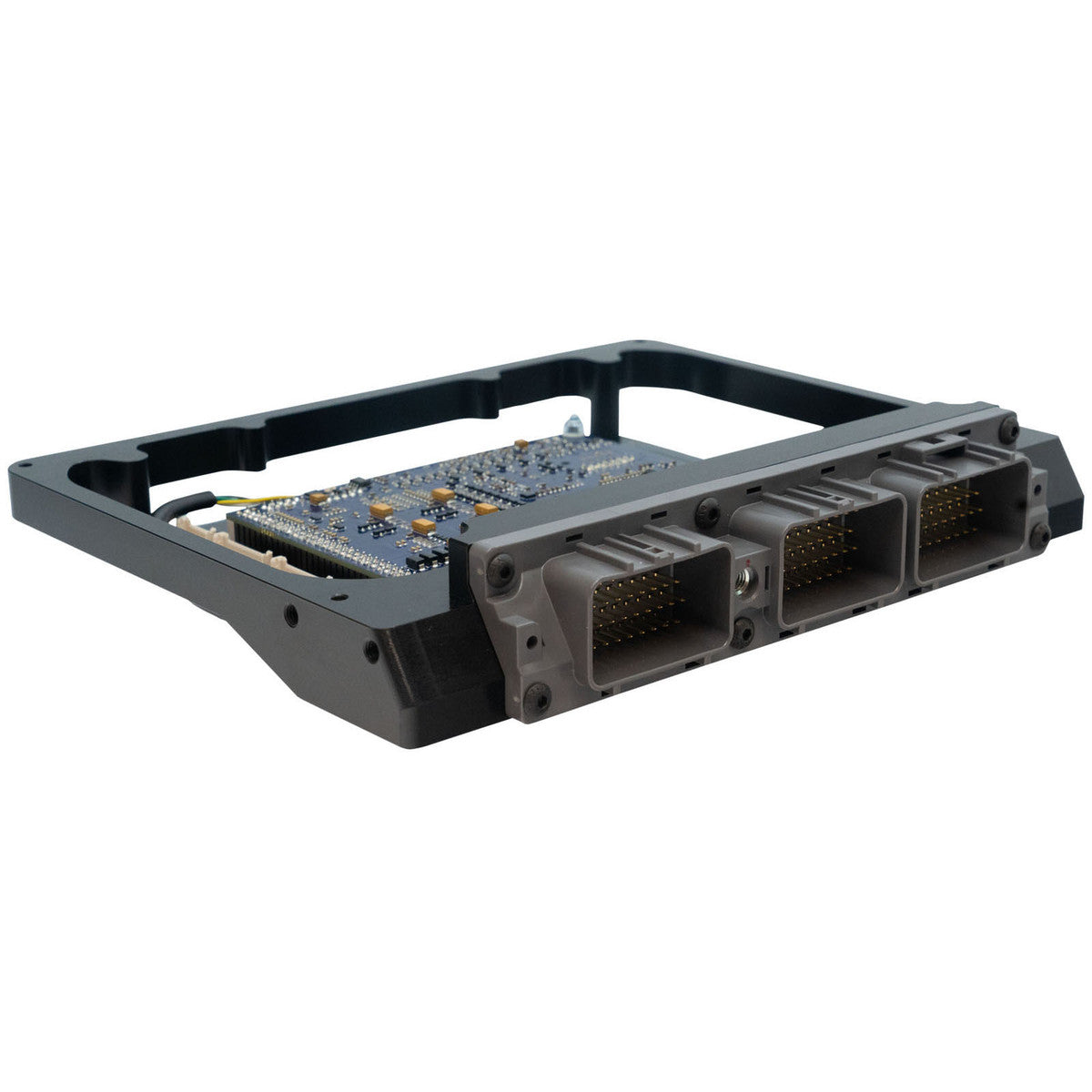

Link TS2JZX Plug-In ECU (Toyota Supra 2JZ, non-VVTi) - 211-4000

The TS2JZX is a G4X plug-in ECU for the A80 Toyota Supra with the non-VVT-i 2JZ. It fits the factory ECU location using the original mounts, loom and connectors, so there is no rewiring, and it keeps the factory functions and comes with a startup map.

It runs Link's G4X platform and PCLink software, with motorsport functions such as nitrous, launch control, anti-lag, traction control and paddle shift control.

Suits: Toyota Supra A80 with 2JZ non-VVT-i engine, 1993-1997. Manual transmission.

Includes: G4X TS2JZX plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

  • Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
  • Onboard logging: 512 MB
  • Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 3.5 A
  • Dimensions: 190 x 230 x 45 mm (7.48 x 9.06 x 1.77 in)
  • Weight: 680 g (23.99 oz)
  • Inputs/outputs: see the TS2JZX installation manual

Notes

  • Check that your connector matches the header shown in the photos before ordering.
  • E-throttle is not usable until the ECU is modified.
  • Automatic models: ask us about Direct Automatic Transmission Control.
  • Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.
