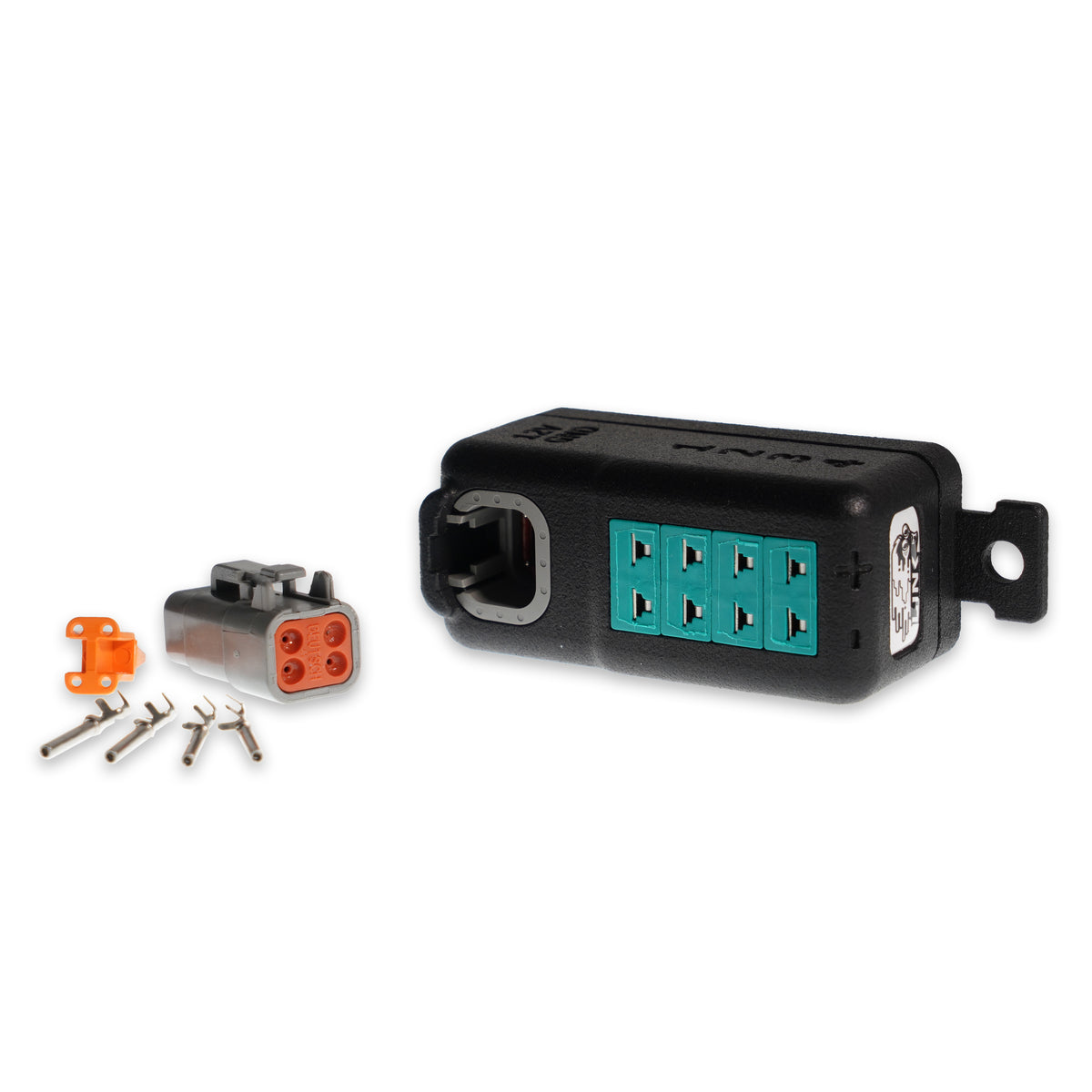

Link TCC04 4 Channel EGT to CAN Module - 101-0384

Link TCC04 4 Channel EGT to CAN Module - 101-0384

Connects up to four Type-K thermocouples to a Link ECU over CAN, so multi-channel temperature monitoring doesn't use up the ECU's analogue inputs. It is ideal for individual-cylinder EGT on four-cylinder engines, and also suits intercooler, turbo housing, head, coolant and oil temperatures.

Every input is cold-junction compensated, the module uses Link's standard DTM4 CAN pinout and comes pre-configured for Link ECUs. Built-in wireless lets you configure, update and view live readings and thermocouple status from a phone or PC.

Suits: All Link ECUs with CAN bus support.

Includes: 4-channel CAN EGT module (custom Link version), DTM4 mating connector kit, 2 x Link stickers.

Specifications

• 4 cold-junction-compensated Type-K inputs (miniature K sockets)
• Measuring range 0 to 1250°C (32 to 2282°F), 0.25°C resolution, maximum 2% deviation
• Detects a short to ground or a missing thermocouple
• Sample rate adjustable up to 100 Hz
• DTM4 CAN pinout: pin 1 12 V, pin 2 ground, pin 3 CAN Low, pin 4 CAN High
• Wireless-configurable CAN speed (125 kbps, 250 kbps, 500 kbps, 1 Mbps), emulation, CAN ID and big/little endian
• Operating voltage: 12 V
• Dimensions: 100 x 35 x 35 mm (3.94 x 1.38 x 1.38 in)
• Weight: 75 g (2.65 oz)

Notes

• PCLink setup uses a supplied LCS stream file: set up a Receive User Stream with the module's CAN ID in the CAN Setup dialog, then load the matching stream from the Streams tab.
• Link recommends installation and setup by an official Link dealer.

You may also need

Link EGT probes (101-0146), or the 4 x EGT probe bundle (101-0146-4B), plus a CAN connection cable for your ECU.

Downloads

• Link Knowledge Base: TCCxx setup and installation guide
