Connects up to eight Type-K thermocouples to a Link ECU over CAN, so multi-channel temperature monitoring doesn't use up the ECU's analogue inputs. It is ideal for individual-cylinder EGT on V8s and other large engines, where cylinder-to-cylinder differences can be used for tuning, individual cylinder trim and engine protection, and also suits intercooler, turbo housing, head, coolant and oil temperatures.

Every input is cold-junction compensated, the module uses Link's standard DTM4 CAN pinout and comes pre-configured for Link ECUs. Built-in wireless lets you configure, update and view live readings and thermocouple status from a phone or PC.

Suits: All Link ECUs with CAN bus support.

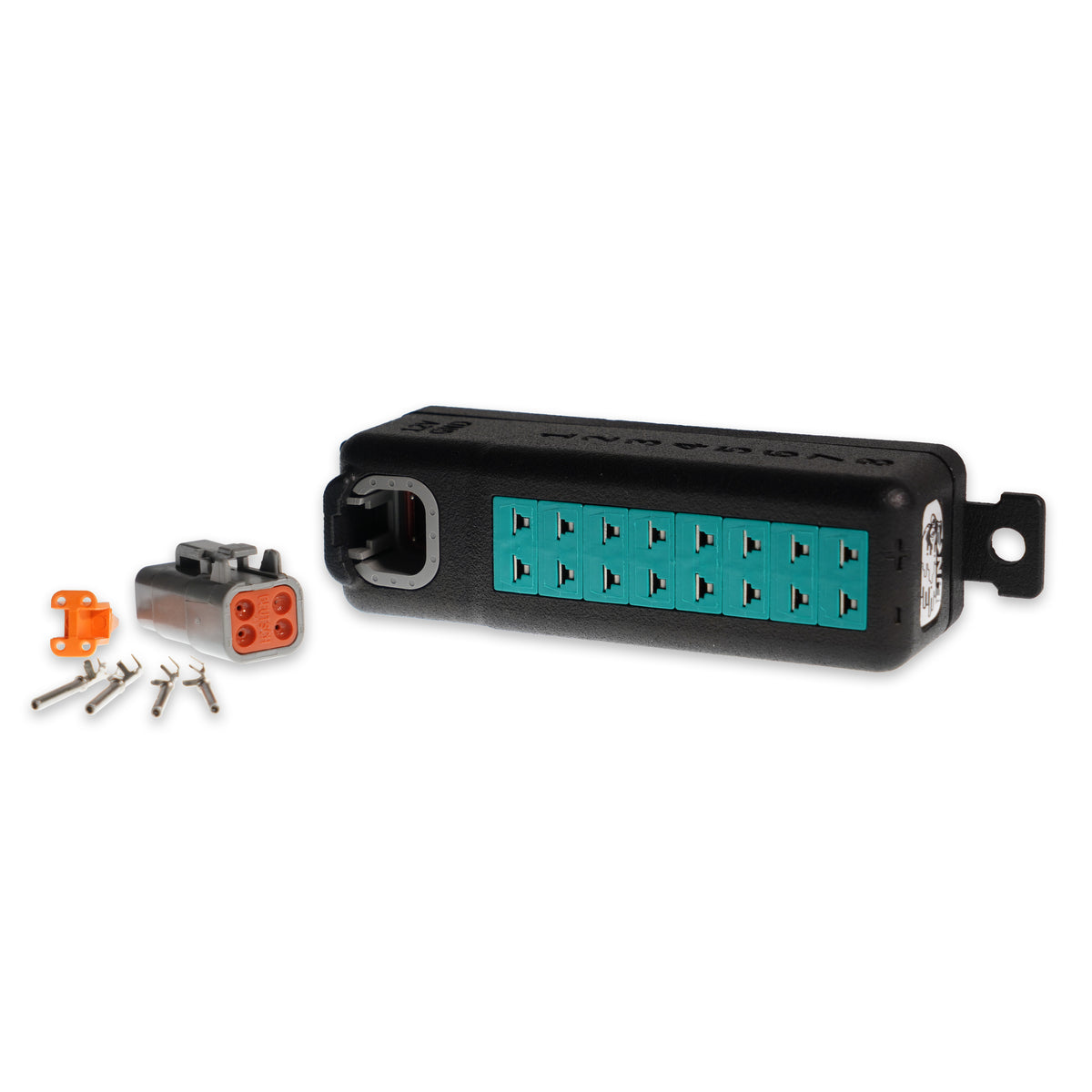

Includes: CAN EGT module (custom Link version), DTM4 mating connector kit, 2 x Link stickers.

Specifications

• 8 cold-junction-compensated Type-K inputs (miniature K sockets)
• Measuring range 0 to 1250°C (32 to 2282°F), 0.25°C resolution, maximum 2% deviation
• Detects a short to ground or a missing thermocouple
• Sample rate adjustable up to 100 Hz
• DTM4 CAN pinout: pin 1 12 V, pin 2 ground, pin 3 CAN Low, pin 4 CAN High
• Wireless-configurable CAN speed (125 kbps, 250 kbps, 500 kbps, 1 Mbps), emulation, CAN ID and big/little endian
• Operating voltage: 12 V
• Dimensions: 130 x 35 x 35 mm (5.12 x 1.38 x 1.38 in)
• Weight: 115 g (4.06 oz)

Notes

• PCLink setup uses a supplied LCS stream file. The TCC08 needs a second Receive User Stream set one CAN ID after the first to receive EGT channels 5-8.
• Link recommends installation and setup by an official Link dealer.

You may also need

Link EGT probes (101-0146), or the 8 x EGT probe bundle (101-0146-8B), plus a CAN connection cable for your ECU.

Downloads

• Link Knowledge Base: TCCxx setup and installation guide
