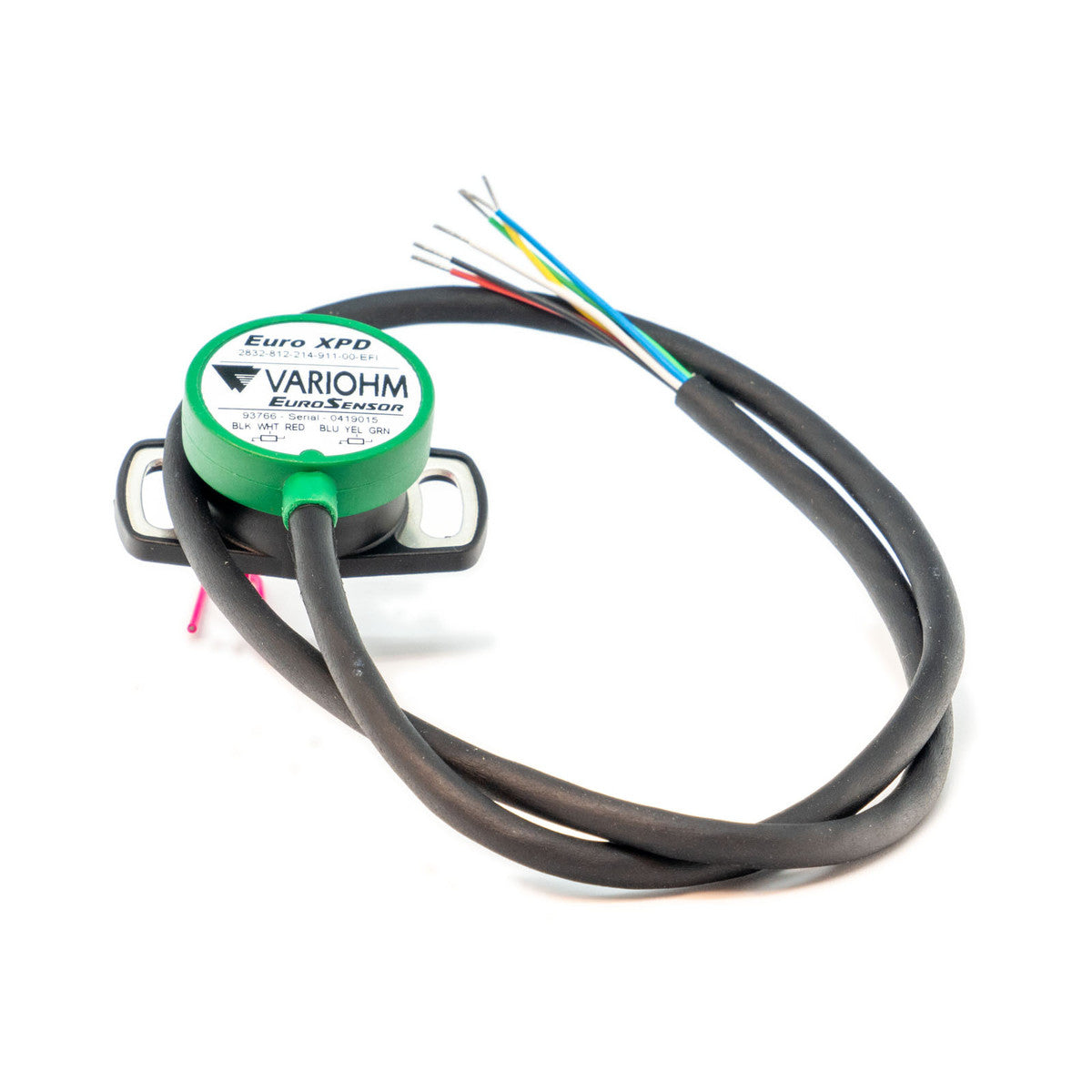

LINK Throttle Position Sensor (TPSCW/CCW) 101-0100

Details

The Link Throttle Position Sensor (TPSCW/CCW) is a high-precision, non-contact Hall Effect rotary position sensor designed for motorsport and high-performance automotive applications. Supporting both clockwise and counter-clockwise rotation, it delivers smooth, accurate throttle position feedback with exceptional durability, making it ideal for custom throttle body installations and harsh operating environments.

Models Supported

• All Link ECUs.
• Other aftermarket ECUs with analogue throttle position inputs.
• 8mm D-shaft throttle shafts.
• Clockwise and counter-clockwise throttle installations.

Warnings

Designed for use with 8mm D-shaft throttle shafts. Wiring instructions are included with the sensor.

Specifications

The Link Throttle Position Sensor has the following specifications:

• Supports clockwise and counter-clockwise operation.
• Non-contact Hall Effect sensing technology.
• 8mm D-shaft input.
• Dual redundant outputs.
• 32mm mounting bolt pattern.
• 5V supply voltage.
• IP68 environmental protection.
• Operating temperature: -40degC to +125degC.
• High-strength, temperature-resistant housing.
• Over 50 million operating cycles.
• 6-wire flying lead.
• Product Dimensions: 540mm(L)x45mm(W)x20mm(H), 21.26in(L)x1.77in(W)x0.79in(H)
• Product Weight: 25 grams (0.88 ounces)
• Electrical: Operating Voltage Range: -0.5-5V, Maximum Input Voltage: 5V, Gauges of wire: 24AWG/0.2mm2
• What's in the Box: Throttle Position Sensor CW/CCW, Printed Accessory instructions
