Link Trigger Wheel (TWS) - 101-0103

Link Trigger Wheel (TWS) - 101-0103

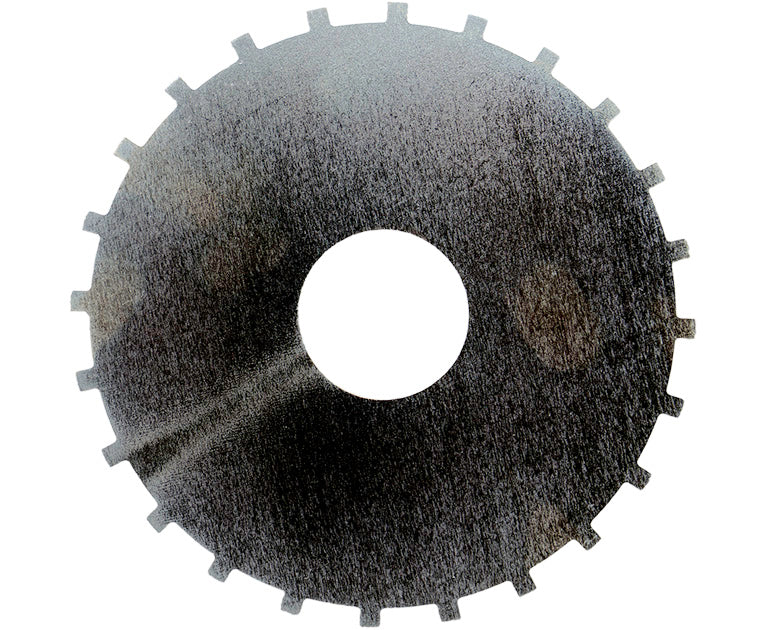

A precision laser-cut steel trigger wheel that gives Link ECUs and other aftermarket engine management systems an accurate crank or cam position reference. The 24-tooth, 150 mm wheel suits custom engine builds, EFI conversions and ignition upgrades, and can be machined to fit.

Suits: All Link ECUs and other aftermarket ECUs.

Includes: Trigger wheel, 24-tooth, 150 mm.

Specifications

• 24-tooth trigger pattern
• Outside diameter 150 mm, centre bore 40 mm
• Laser-cut steel
• Dimensions: 145 x 145 x 3 mm (5.71 x 5.71 x 0.12 in)
• Weight: 365 g (12.88 oz)

Notes

• Designed for custom installation and may need machining for your application.
• Use with a compatible Hall effect or VR trigger sensor. Wheel alignment and sensor position are critical for accurate timing.
• Link recommends installation and setup by an official Link dealer.

You may also need

A Link Hall Effect Sensor Kit (101-0280). Other sizes: TWM (101-0102) and TWL (101-0101).
