LINK VR4Link - VR4X 223-4000

Details

Genuine plug-and-play convenience with modern G4X architecture, advanced tuning and motorsport features.

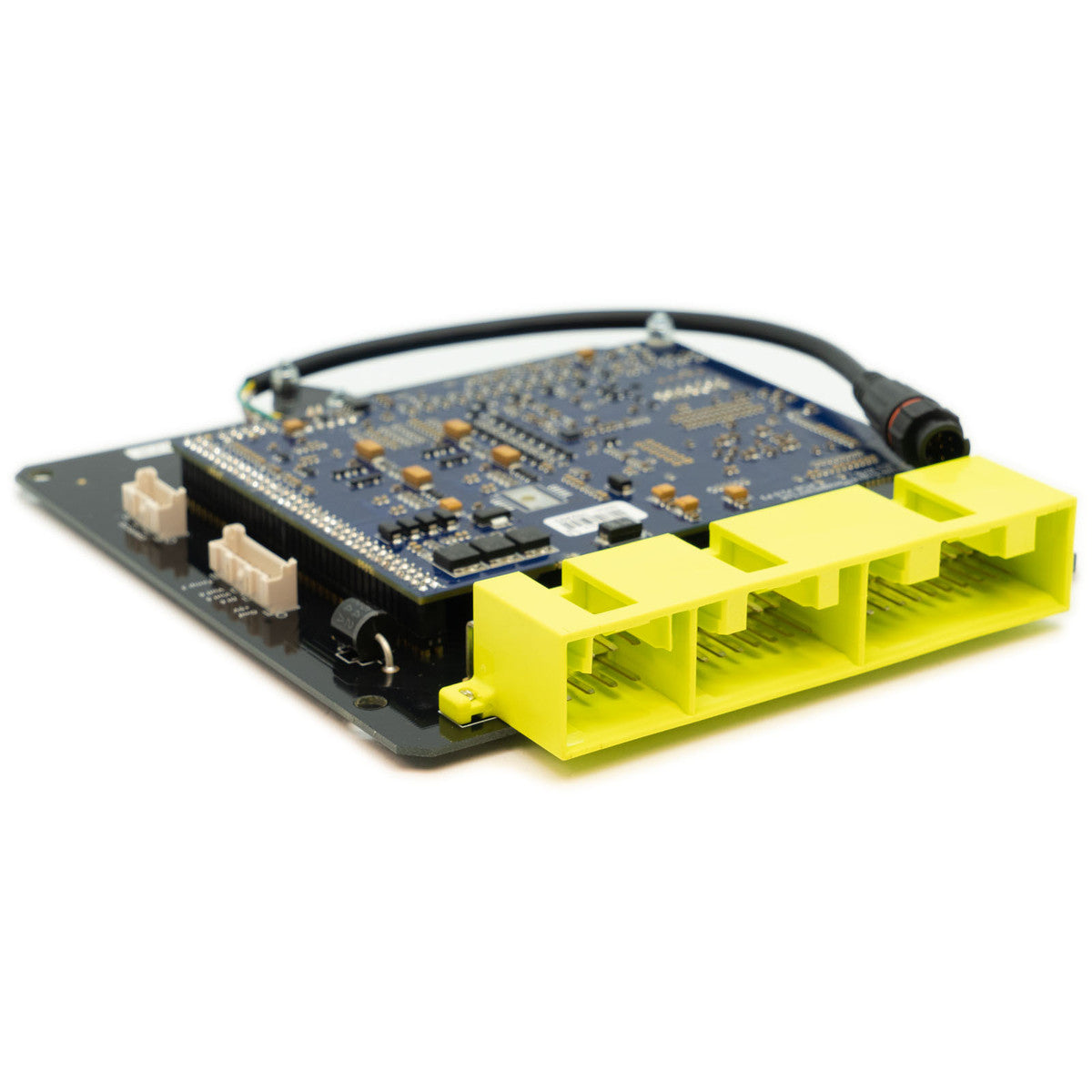

Purpose-built for the Mitsubishi Galant VR4, the VR4X is designed to fit directly into the factory ECU location using the factory mounts, original wiring loom and connectors. No rewiring, no adapter looms, no compromises. It retains all factory functionality, delivers seamless OEM integration and includes a startup map to get your vehicle running quickly. The result is a clean, simple, reliable installation that maintains a stock appearance.

Link G4X Plug-in ECUs share the same processor, firmware, software and standard G4X feature set found throughout the G4X range. Features include dual CAN Bus, Flex Fuel, Flexible Engine Protection Limiters, CAN Keypad Control, Open and Closed Loop Boost Control, Dual Closed Loop Lambda, VVT Control, a built-in Trigger Oscilloscope, compatibility with aftermarket displays, Direct Automatic Transmission Control and 512MB of onboard data logging. It also features a built-in MAP sensor.

Drawing from Link's championship-winning G4X platform, the VR4X also supports advanced tuning and motorsport features including Nitrous Control, Launch Control, Anti-lag, Cruise Control, Traction Control, Race Timer and Power Management, Gear Shift Control and Paddle Shift Control.

A Link Plug-in ECU is the ideal solution when available for your vehicle and the wiring remains in good condition, providing modern engine management without the complexity of a wire-in installation.

Models Supported

The VR4X is designed to suit the following applications:

• Mitsubishi Galant VR-4 E38A with 4G63T engine from 1987-1992
• Mitsubishi Galant VR-4 E39A with 4G63T engine from 1987-1992
• Mitsubishi Eclipse G1 GS-T with 4G63T engine
• Eagle Talon 1G DSM with 4G63T engine
• Plymouth Laser RS Turbo with 4G63T engine

Important

• Please check your connector matches the header in the listed photo before purchasing
• This ECU works for manual transmissions only
• This model includes an onboard MAP sensor
• Knock control not available on this ECU
• Most factory features are supported
• This ECU will need a modification before E-Throttle is usable

ECU Features

• Dual CAN Bus
• E-throttle Control
• Flex Fuel
• Trigger Oscilloscope
• 3 Axis Accelerometer
• Selectable Temp Input Pullups
• Flexible engine protection limiters
• CAN Keypad Control
• VVT Control
• Open Loop Boost Control
• Closed Loop Boost Control
• Dual Closed Loop Lambda
• Direct Automatic Transmission Control
• Compatible with all leading aftermarket dashes via CAN or serial stream
• 512 Megabytes of internal data logging

Note: This ECU will need a modification before E-Throttle is usable

Motorsport Features

• Nitrous Control
• Launch Control
• Anti-lag
• Cruise Control
• Traction Control
• Race Timer and Power Management
• Gear Shift Control
• Paddle Shift Control

Specifications

• Inputs and Outputs: For the full list of Inputs and Outputs, please see the VR4X Installation Manual
• Communications: 2 CAN Bus Channels, LTW 6-Pin USB Tuning Connection
• Product Dimensions: 190mm(L)x160mm(W)x30mm(H), 7.48in(L)x6.30in(W)x1.18in(H)
• Product Weight: 260 grams (9.17 ounces)
• Electrical: Operating Voltage Range: 6.5-24V, Maximum Input Voltage: 36V, Maximum Continuous Current Draw: 500mA
• What's in the Box: G4X Mitsubishi VR4X Plug-in ECU, Anti-static Strap, USB Tuning Cable - ECU to USB, Link stickers, Plug-in Manual Card, Product Registration Card

Manuals & Install Guides

• Download Product Manual
