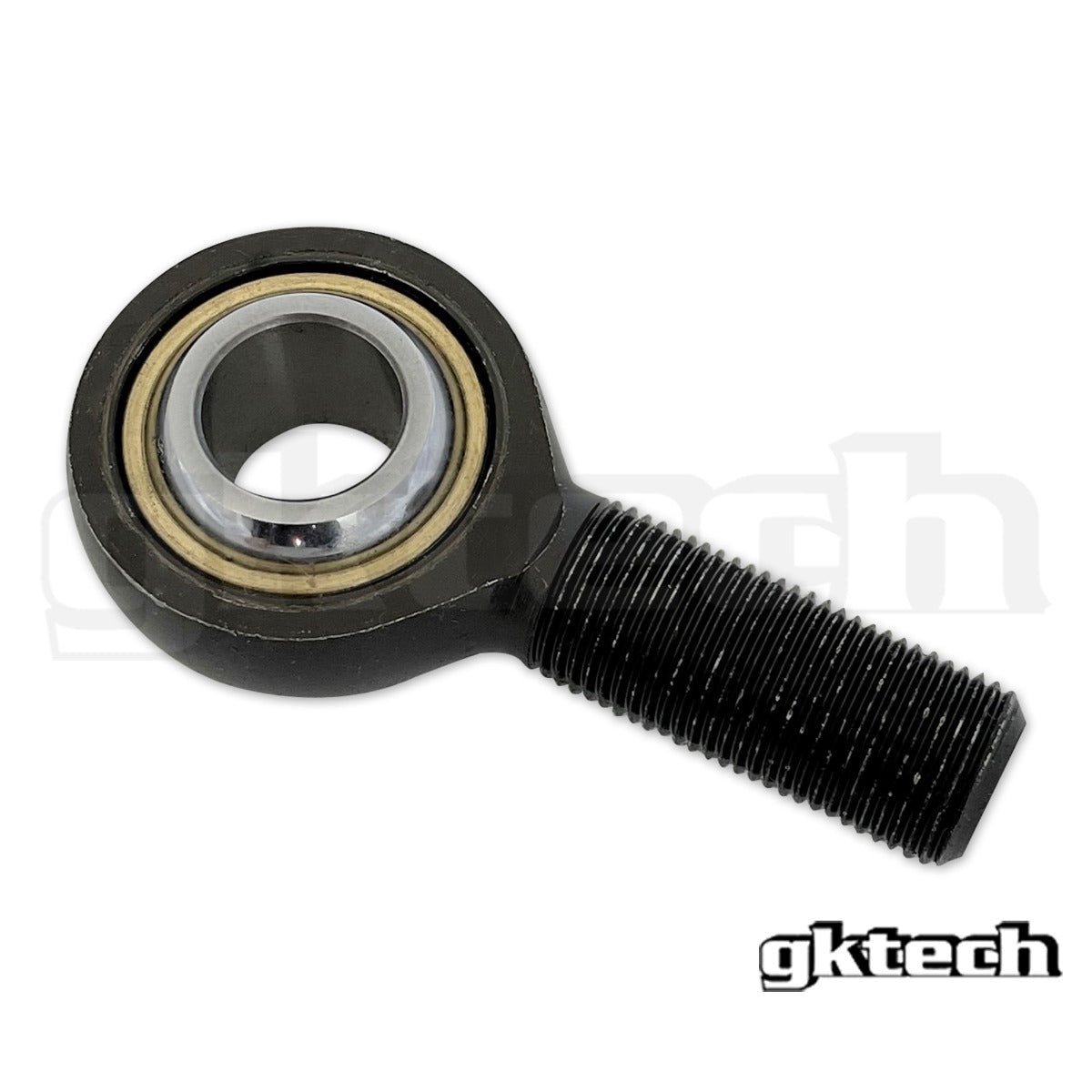

GKTech - Replacement PCML12TS heim - PCML12TS

Part Number: PCML12TS
  • USA TARIFF PRICING MAY AFFECT SUPPLY LEAD TIMES ON GKTECH, EXPECT 2-4 WEEKS OR MORE ON AFFECTED ITEMS.
  • SPECIAL ORDER ITEM – PLEASE CONTACT US TO VERIFY THE LEAD TIME BEFORE PLACING YOUR ORDER.

Warehouse Icon Inventory Location: Manufacturer Warehouse USA

Replacement PCML12TS heim Used in the following GKTECH products: R32 front upper camber arms (SKU= R32X-FUCA) and Z32 front upper camber arms (SKU = Z32X-FUCA)

Sold individually

PCML12TS

IMPERIAL METRIC
ROD END BALL BORE SIZE ROD END BALL BORE SIZE
0.7500 in 19.0500 mm
ROD END BALL WIDTH ROD END BALL WIDTH
0.8750 in 22.2250 mm
THREAD LENGTH THREAD LENGTH
1.7500 in 44.4500 mm
THREAD SIZE THREAD SIZE
3/4 - 16 UNF LH 3/4 - 16 UNF LH
ROD END HEAD DIAMETER ROD END HEAD DIAMETER
1.7500 in 44.4500 mm
ROD END MISALIGNMENT ANGLE ROD END MISALIGNMENT ANGLE
24 degrees 24 degrees
ROD END STATIC LOAD CAPACITY (lbs) ROD END STATIC LOAD CAPACITY (kg)
21,400 lbs 9,707 kg
ROD END MATERIAL ROD END MATERIAL
Chromoly Chromoly
LUBRICATION LUBRICATION
PTFE lined PTFE lined
["NISSAN R32 SKYLINE GTR","NISSAN R32 SKYLINE GTS-T","NISSAN R33 SKYLINE GTR","NISSAN R33 SKYLINE GTS-T","NISSAN R34 SKYLINE GT-T","NISSAN S13 CA18 240SX HATCH","NISSAN S13 CA18 240SX/SILVIA","NISSAN S13 SR20 240SX HATCH","NISSAN S13 SR20 240SX/SILVIA","NISSAN S14 240SX/SILVIA","NISSAN S15 SILVIA","INFINITI G35 SKYLINE","INFINITI G37 SKYLINE","NISSAN Z32 300ZX","NISSAN Z33 350Z","NISSAN Z34 370Z"]
