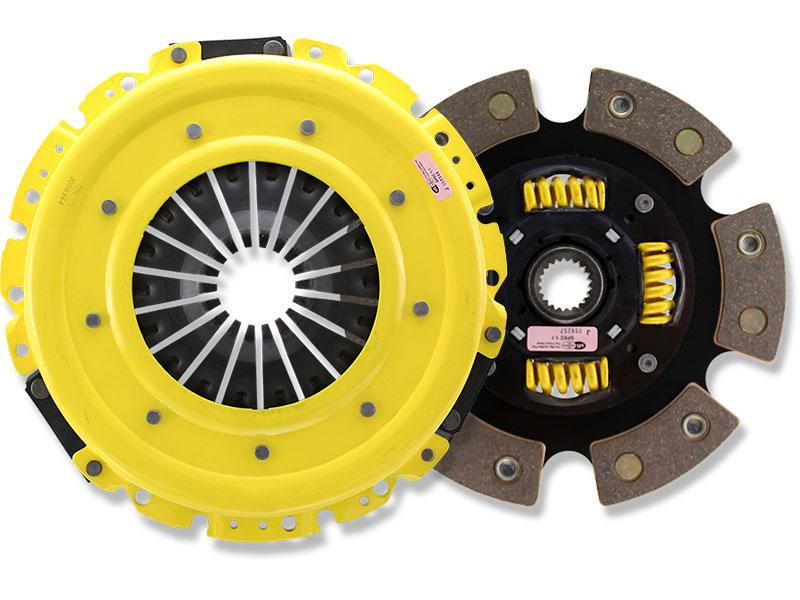

    ACT NS3-XTG6 CLUTCH (PUSH TYPE RB20/25/26) 630FT/LBS 6 PUCK SPRUNG

    $799.99 CAD


    Delivery and Shipping

    Free Ground Shipping In Canada Over $250 Live Now! - Applied Automatically At Checkout - Freight & Oversize Excluded

    THIS KIT IS A SPECIAL ORDER. USUALLY SHIPS 2-3 WEEKS FROM ORDER DATE.

    Specifications


    Item Description XT/Race Sprung 6 Pad
    Product Weight (lbs.) 19.1
    Torque Capacity (ft/lbs.) 630
    Torque Capacity Over OE 123%
    Disc Material Ceramic
    Clutch Disc Diameter (Inches) 9.4
    Clutch Disc Diameter (Millimeters) 240
    Input Shaft Diameter (inches) 1
    Pressure Plate Type Xtreme
    Warranty 12 Months (view details)

    Description

    NS3-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

    Description
    Feel Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
    Life Moderate friction life, extended by ACT's exclusive diaphragm design
    Quality Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
    Recommended Use Recommended for high horsepower street or race use
    ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
