GKTech - V2 Super Lock R32 / R33 / R34 / Z32 Front Knuckles - R334-KNCK

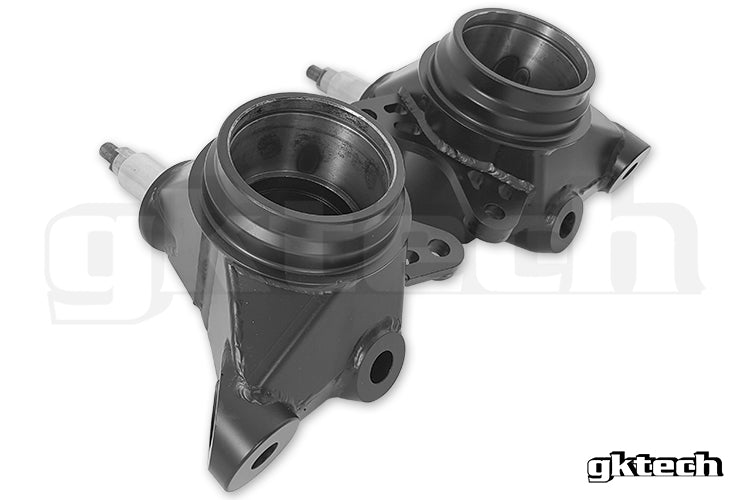

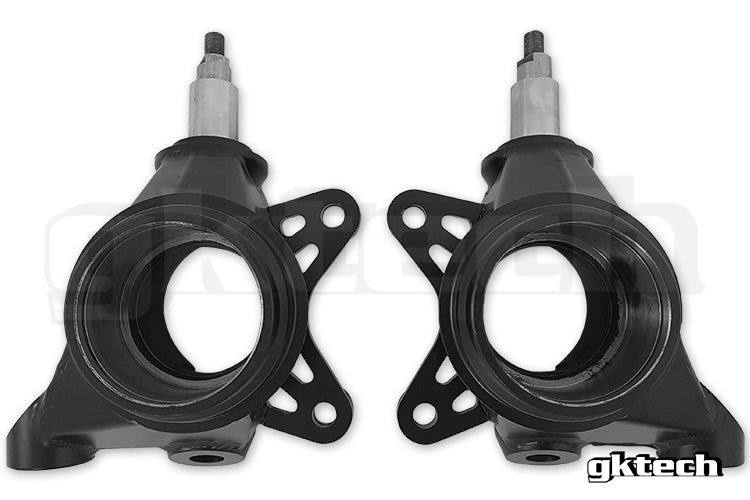

GKTech V2 Super Lock R32 / R33 / R34 / Z32 front knuckles, part number R334-KNCK. A lightweight sheet metal design for drift or circuit use.

• Lightweight sheet metal design developed with FEA (Finite Element Analysis), based on the earlier V1 aluminium knuckles
• 65+ degrees of steering lock with a linear steering response (60 to 70 degrees depending on rim width and offset and lower control arm setup)
• Spindle height raised for roll center and bump steer correction
• 3.08 lb lighter each
• Suited to drift and circuit/grip use
• Bolt in place of the standard knuckles. Press out the old hubs and press them into the new knuckles. Mechanical knowledge is required
• Note: offset steering rack spacers are recommended to avoid steering bind. Notched lower control arms or modified bump stops help. Longer tie rods or adjustable length tie rod ends are alternatives. The R33 rack gives the least travel, an R32 rack gives a few more degrees of lock
• Note: the 65+ degrees quoted assumes wheel clearance. High offset wheels that contact the chassis will reduce steering lock
• Note: only suits RWD steering setups. GTS-4 and GT-R front suspension is different and these knuckles will NOT work with it
• Note: when using R34 front brake calipers the mounting holes must be drilled out from 12mm to 14mm (there is enough material)
• Note: no provision for ABS

Fitment

• Nissan R32 Skyline GTS-T (RWD)
• Nissan R33 Skyline GTS-T (RWD)
• Nissan R34 Skyline GT (RWD)
• Nissan Z32 300ZX

Contact us if you are unsure of fitment or Size HERE
