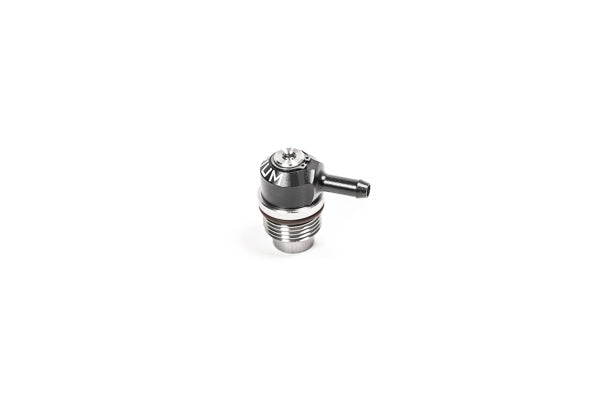

Radium Engineering 10AN ORB Swivel Banjo PCV Valve 6.5mm Barb - 20-1000-1065-PCV

Radium Engineering 20-1000-1065-PCV low profile swiveling 10AN ORB PCV valve with a 6.5mm barb outlet.

• Inlet: 10AN ORB (7/8-14 threads)
• Outlet: 6.5mm barb
• Low profile 90-degree swivel
• Quick connect is anodized aluminum, 10AN ORB is stainless steel
• Sealing O-rings are FKM and silicone
• Requires an extra 0.26 in (6.7 mm) of clearance for the O-ring to seat properly
• Supplied fully assembled with a 10AN ORB FKM O-ring preinstalled

Fitment

• Compatible with all Radium Competition Catch Cans and Radium PCV baffle plates. (Source: Radium Engineering)
• Threads into other 10AN ORB female ports that provide the extra clearance. (Source: Radium Engineering)
• Not compatible with standard or standard Fluid Lock catch cans because of depth. (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
