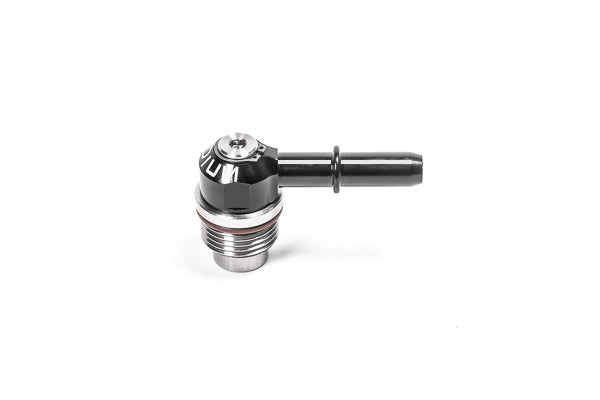

Radium Engineering 10AN ORB Swivel Banjo PCV Valve to 10mm SAE Male - 20-1000-1010S-PCV

Radium Engineering 20-1000-1010S-PCV low profile swivel PCV valve with a 10AN ORB inlet and 10mm SAE quick connect male outlet. Universal application.

• Low-profile 90-degree swivel design
• Internal plunger meters crankcase vent flow based on engine load
• Closes during an intake backfire and in boost on turbo or supercharged engines
• Inlet: 10AN ORB (7/8 in-14 threads)
• Quick connect body in anodized aluminum, 10AN ORB section in stainless steel
• FKM and silicone sealing O-rings
• Supplied fully assembled with a 10AN ORB FKM O-ring preinstalled
• Not compatible with standard or standard Fluid Lock catch cans because of depth
• Compatible with Radium Competition Catch Cans and PCV baffle plates
• Other 10AN ORB ports work only if they have an extra 0.26 in (6.7 mm) of clearance after the threads for the O-ring to seat

Fitment

• Universal. For engines where the OEM PCV valve has been removed, moved to a catch can outlet, or never had a PCV system. Radium does not state vehicle-specific fitment. (Source: Radium Engineering)
