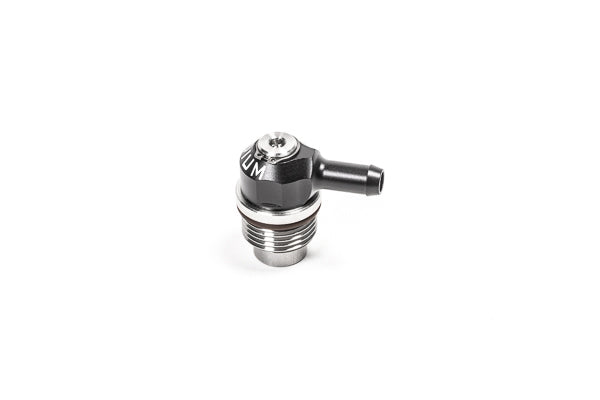

Radium Engineering 10AN ORB Swivel Banjo PCV Valve to 8.5mm Barb - 20-1000-1085-PCV

Radium Engineering 20-1000-1085-PCV low profile 10AN ORB swivel banjo PCV valve with an 8.5mm barb outlet. Universal application for use with Radium Competition Catch Cans and PCV baffle plates.

• Used when the OEM PCV valve is removed, relocated to a catch can outlet, or installed on an engine that lacks a PCV system
• Inlet: 10AN ORB (7/8"-14 threads), stainless steel
• Outlet: 8.5mm barb
• Quick connect material: anodized aluminum
• Low profile 90-degree swivel design
• FKM and silicone sealing O-rings
• Needs an extra 0.26 in (6.7 mm) of clearance for the O-ring to seat properly
• Ships fully assembled with a preinstalled 10AN ORB FKM O-ring

Fitment

• Radium Competition Catch Cans and Radium PCV baffle plates. (Source: Radium Engineering)
• Not compatible with standard catch cans or standard Fluid Lock catch cans because of its depth. (Source: Radium Engineering)
• Will thread into other 10AN ORB female ports that have an extra 0.26 in of clearance behind the threads. (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
