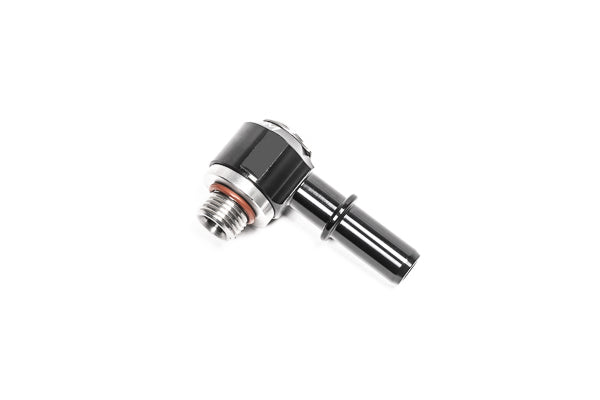

Radium Engineering 6AN ORB Swivel Banjo to 12mm SAE Male Fitting - 20-1000-0612S

Radium Engineering 20-1000-0612S low profile swiveling banjo fitting, 6AN ORB to 12mm SAE male. For fuel rail and fuel surge tank applications.

• Rotates 360 degrees, even after installation
• Low profile design suited to 90 degree connections
• Suited to high-pressure fuel and oil systems. Do not exceed 400 psi
• Safe for use with all fuel types, oil and engine coolant
• Installed height (bottom surface to top): 1.019 in (25.9 mm)
• Lubricate the ORB O-ring with O-ring lube, petroleum jelly or oil before installing. Install AN flare connections dry and clean, hand-thread until fully engaged, then tighten 1/4 to 1/2 turn

Fitment

• Universal fitting for fuel rail and fuel surge tank applications. No specific vehicle applications are listed. (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
