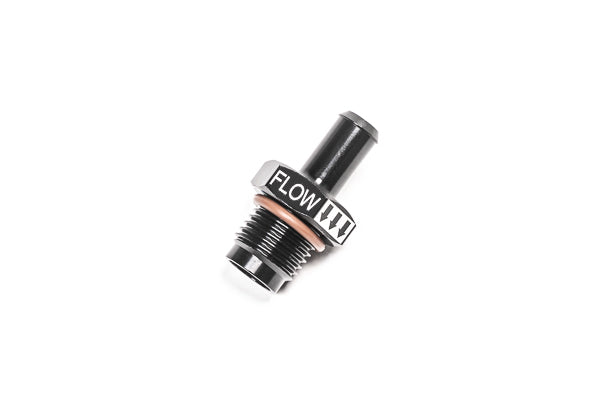

Radium Engineering 6AN ORB to 8.5mm Barb Check Valve - 20-1533

Radium Engineering 20-1533 check valve with a 6AN ORB port and an 8.5mm barb. Universal application.

• One-way check valve that allows flow in only one direction. Flow direction is laser etched on the hex
• Spring-loaded piston design
• Anodized aluminum body with FKM seals and stainless steel hardware
• 6AN ORB port (9/16"-18), 19 mm (3/4 in) hex, 1.4 in (46 mm) total length
• Area under the threads is extended, adding 3.4 mm compared with a standard 6AN ORB fitting
• Cracking pressure of 0.3 psi at 70°F
• Maximum operating and backflow holding pressure of 1000+ psi at 70°F
• Compatible with gasoline, ethanol, methanol, diesel, water, coolant and oil

Fitment

• Universal. (Source: Radium Engineering)
