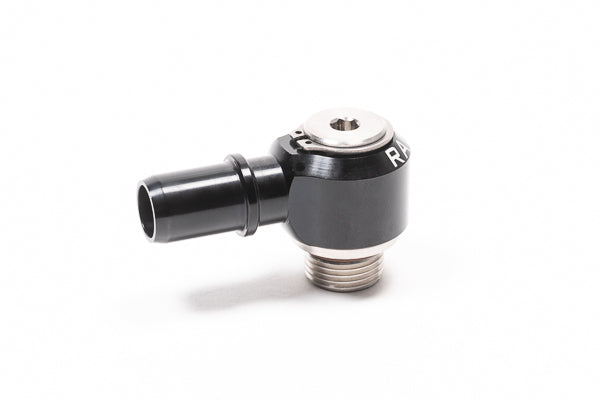

Radium Engineering 8AN ORB Swivel Banjo to 16mm SAE Male - 20-1000-0816S

Radium Engineering 20-1000-0816S low profile swiveling banjo fitting with an 8AN ORB inlet and 16mm SAE male outlet. Universal application.

• Swivels 360 degrees, even after installation
• Very low profile, an excellent option for 90-degree connections
• Suitable for high pressure fuel and oil systems
• Safe for use with all fuel types, oil and engine coolant
• Installed height (bottom of installed surface to top): 1.121 in (28.5 mm)
• Do not exceed 400 psi
• Lubricate the ORB O-ring with O-ring lube, petroleum jelly or oil before assembly to prevent damage

Fitment

• Universal. Radium lists these swiveling fittings for universal applications and does not state vehicle-specific fitment. (Source: Radium Engineering)
