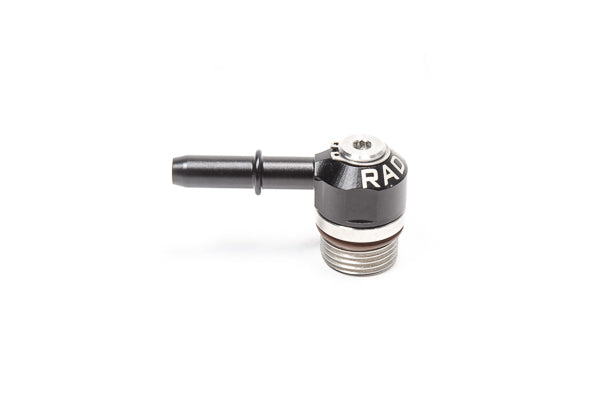

Radium Engineering 8AN ORB Swivel Banjo to .313 SAE Male - 20-1000-08313

Radium Engineering 20-1000-08313 low profile swiveling banjo fitting, 8AN ORB to .313 SAE male.

• 8AN ORB low profile swiveling fitting
• Rotates 360 degrees, including after installation
• Installed height of 0.797 in (20.2 mm)
• Good option for 90-degree connections
• Suitable for high pressure fuel and oil systems. Do not exceed 400 psi
• Compatible with all fuel types, oil and engine coolant
• Lubricate the O-ring before assembly. Hand-thread AN flares until fully engaged, then tighten 1/4 to 1/2 turn

Fitment

• Universal fitting. Radium Engineering does not list vehicle-specific fitment for this part. (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
