Radium Engineering Carbon Fiber Fuel Cell Lid 22 Gallon - 13-0422-01

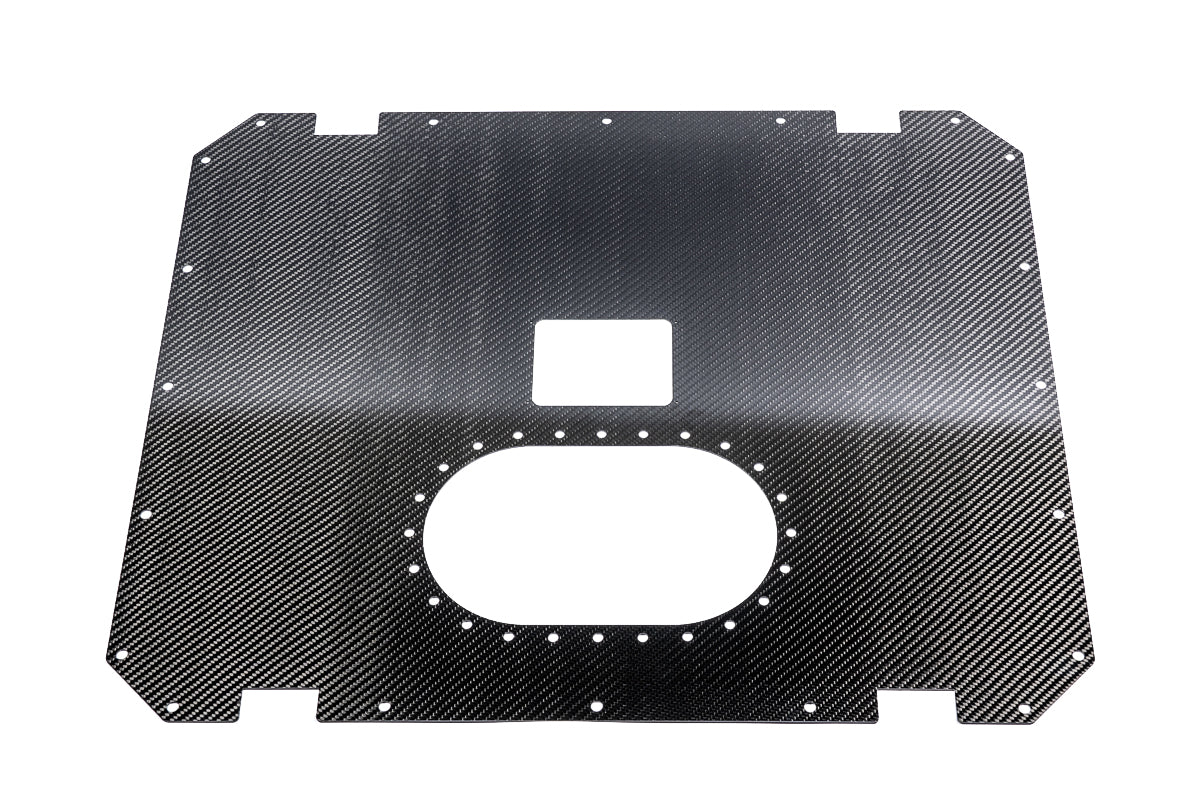

Radium Engineering 13-0422-01 dry carbon fiber fuel cell lid for the Radium 22 gallon RA-Series fuel cell (20-0622).

• Dry carbon construction with pre-impregnated 3K, 2x2 twill fabric
• 68% lighter than the powder-coated aluminum lid that ships standard with Radium fuel cells
• Each kit includes one lid
• Reuses the original fuel cell hardware
• Does not fit fuel cells made by other companies
• Perimeter bolts are torqued to 6.8 Nm (60 in-lbs). Overtightening can crack the carbon resin
• Check with your racing organization that carbon fiber is allowed for the fuel cell enclosure
• A new gasket (18-0015) may be needed when reinstalling a drop-in fuel pump assembly such as the FCST-X

Included

• Carbon fiber fuel cell lid

Fitment

• Radium RA-Series 22 gallon fuel cell, 20-0622. (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
