Radium Engineering Catch Can Kit BMW E46 M3 (LHD) Fluid Lock - 20-0073-FL

Radium Engineering 20-0073-FL catch can kit with Fluid Lock for the BMW E46 M3 and M3 CSL (LHD only).

• Collects oil and water condensation from crankcase gases before they reach the intake
• Closed system that keeps oil vapors out of the cabin
• Direct fitment with no drilling required
• 10AN ORB inlet and outlet ports and a 4AN ORB drain port
• Two-step oil separation baffling
• O-ring sealed dipstick
• 7 fl oz capacity
• Patented Fluid Lock system prevents overfilling and traps collected fluids until emptied
• Mounts in the right-hand engine bay near the firewall, so it is not compatible with RHD models
• Fits early models where the ABS module sits in that compartment, and later models with a secondary PCV system
• Does not include the V2 quick-connect fittings that come with the 3-Series kit

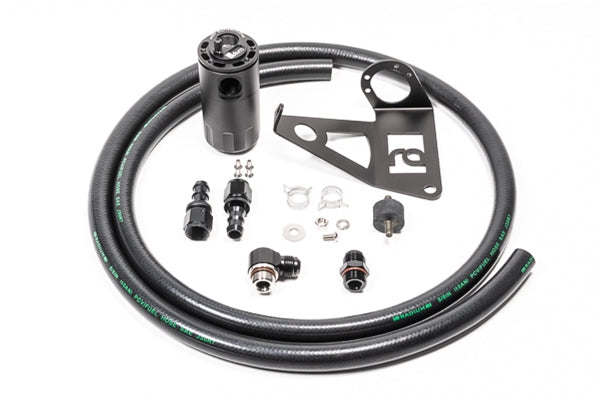

Included

• Billet aluminum catch can with integrated dipstick
• Laser-cut, anodized E46-specific mounting bracket
• Anodized aluminum 10AN hose ends and adapter fittings
• 10AN (5/8 in) PCV hose
• Stainless steel mounting hardware and hose clamps

Fitment

• 2000-2006 BMW E46 M3, LHD. (Source: Radium Engineering)
• 2003-2004 BMW E46 M3 CSL, LHD. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
