Radium Engineering Catch Can Kit CCV Cadillac CTS-V 2009-2015, Fluid Lock - 20-0563-FL

Radium Engineering 20-0563-FL Fluid Lock CCV catch can kit for the 2009-2015 Cadillac CTS-V.

• Mounts to three OEM threaded bosses at the rear of the supercharger housing
• Runs inline between the CCV ports and the intake pipe to collect oil and moisture from crankcase vapors before they reach the intake
• Does not address blow-by from the PCV valve side
• Direct fitment, no drilling required
• Large 10AN ORB inlet and outlet ports
• 4AN ORB drain port
• 2-step oil separation baffling
• O-ring sealed dipstick
• 7 fl oz capacity
• Patented Fluid Lock system

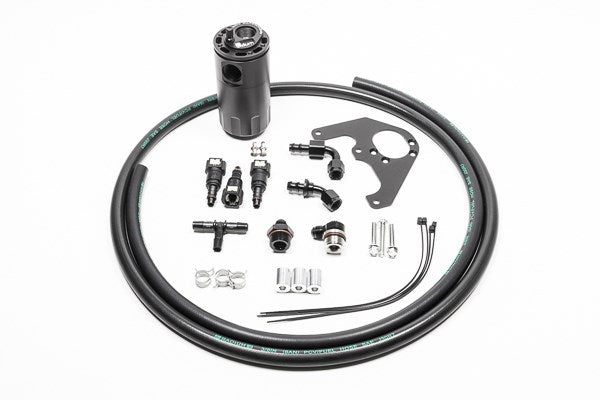

Included

• Baffled oil catch can
• Baffled oil cap replacement
• O-ring sealed aluminum PCV valve
• CTS-V specific mounting bracket
• AN adapter fittings and hose ends
• Stainless steel hardware
• Radium PCV hose

Fitment

• 2009-2015 Cadillac CTS-V. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
