Radium Engineering CCV Catch Can Kit Corvette C6 2005-2013, Fluid Lock - 20-0786-FL

Radium Engineering 20-0786-FL Fluid Lock CCV catch can kit for the 2005-2013 Corvette.

• Runs inline between the crankcase vent (CCV) port and the intake pipe
• Helps prevent oil and sludge buildup in the air filter intake pipe from high-load crankcase flow
• Compatible with dry sump LS3, LS7 and LS9, and wet sump LS2 and LS3
• For LS3 fitment, the factory Helmholtz airbox resonator must be removed or an LS7 intake installed
• Direct fitment, no drilling required
• 10AN ORB inlet and outlet ports
• 4AN ORB drain port
• 2-step oil separation baffling
• O-ring sealed dipstick
• 7 fl oz capacity
• Patented Fluid Lock system

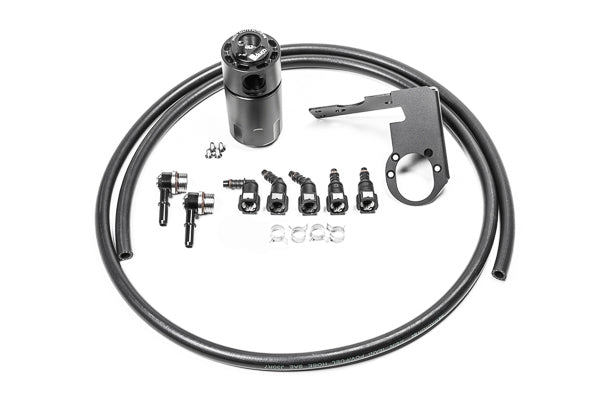

Included

• Baffled oil catch can with integrated condenser and dipstick
• Anodized aluminum mounting bracket
• SAE quick connect fittings
• Stainless mounting hardware
• 3/8 in PCV rubber hose
• Spring clamps

Fitment

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
