Radium Engineering CCV Catch Can Kit Honda Civic Type-R (2017+) Fluid Lock - 20-0825-FL

Radium Engineering 20-0825-FL CCV catch can kit with Fluid Lock for the 2017+ Honda Civic Type-R (LHD only).

• CCV-side catch can that runs inline with the crankcase vent port
• Fits under the OEM engine cover with no modifications; secures to the RH motor mount (an aftermarket motor mount may require minor modifications)
• Crankcase vent lines run over the engine and are billet clamped to the turbo inlet pipe using temperature-resistant metal tubes
• Direct fit, no drilling required
• 7 fl oz capacity
• 10AN ORB inlet and outlet ports, 4AN ORB drain port
• Two-step oil separation baffling
• O-ring sealed integrated dipstick
• Patented Fluid Lock system prevents overfilling and holds collected fluid until emptied
• LHD vehicles only

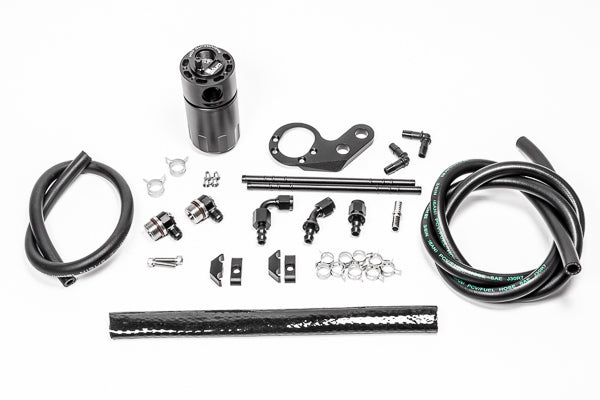

Included

• Anodized oil catch can with integrated condenser and dipstick
• Anodized aluminum Civic Type-R specific mounting bracket
• Anodized aluminum AN adapter fittings and hose ends
• PCV hose for custom applications
• Stainless steel mounting hardware

Fitment

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
