Radium Engineering CCV Catch Can Kit Honda S2000 (06-09 LHD, 00-09 RHD) Fluid Lock - 20-0097-FL

Radium Engineering 20-0097-FL CCV (crankcase) catch can kit with Fluid Lock for the Honda S2000. Fits the 06-09 LHD and 00-09 RHD S2000.

• Installs inline with the 1/2 in valve cover breather port
• At high load (WOT) that hose sees vacuum and can pull oil vapor and fuel into the air filter intake pipe. The catch can is especially useful on turbo or supercharged engines that accumulate oil in the intercooler
• Direct fitment with no drilling required
• 10AN ORB inlet and outlet ports and a 4AN ORB drain port
• Two-step oil separation baffling
• O-ring sealed dipstick
• 7 fl oz capacity
• Patented Fluid Lock system prevents overfilling and traps collected fluids until emptied
• Can be used on 00-05 LHD cars if the cruise control module is removed

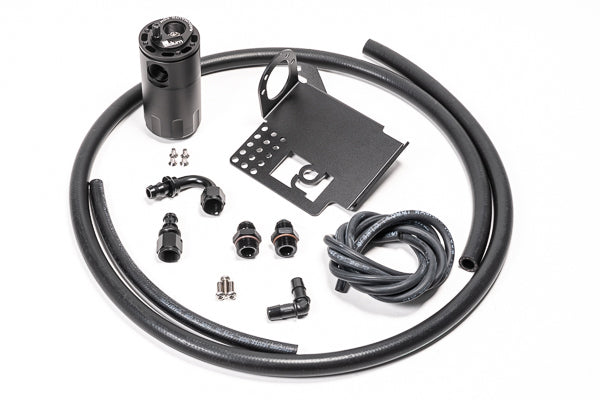

Included

• Radium billet oil catch can with integrated condenser and dipstick
• S2000-specific laser-cut, powder-coated mounting bracket
• Anodized aluminum 8AN hose ends and adapter fittings
• Enough 1/2 in PCV rubber hose for custom applications
• Vacuum and heater hose to replace the OEM metal hard tube loom
• Stainless steel mounting hardware

Fitment

• 2006-2009 Honda S2000, LHD. (Source: Radium Engineering)
• 2000-2009 Honda S2000, RHD. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
