Radium Engineering CCV Catch Can Kit Nissan S13 240SX/Silvia/180SX/200SX, Fluid Lock - 20-0726-FL

Radium Engineering 20-0726-FL CCV catch can kit with Fluid Lock for the Nissan S13 240SX, Silvia, 180SX and 200SX.

• CCV-side catch can that runs inline between the crankcase vent (CCV) port and the intake pipe
• Collects oil and water condensation from the crankcase gases before they reach the intake, keeping oil out of the intake, intercooler, throttle body and intake manifold
• No drilling required for installation
• 7 fl oz capacity
• Large 10AN ORB inlet and outlet ports, 4AN ORB drain port
• Two-stage oil separation baffling
• O-ring sealed dipstick
• Patented Fluid Lock system prevents overfilling and holds collected fluid until emptied
• Mounts to two holes on the left-hand side of the unibody near the firewall, positioned to clear the wiper motor (RHD) and master cylinders (LHD)
• Connects to the OEM valve cover barb. The SR20DET-specific fittings are not included and are sold separately: 20-0811 10AN press-in fitting, 14-0215 10AN hose end 180 degree, 14-0211 10AN hose end straight
• Does not address blow-by from the PCV side of the crankcase. Radium recommends using it with the PCV kit, 20-0725-FL

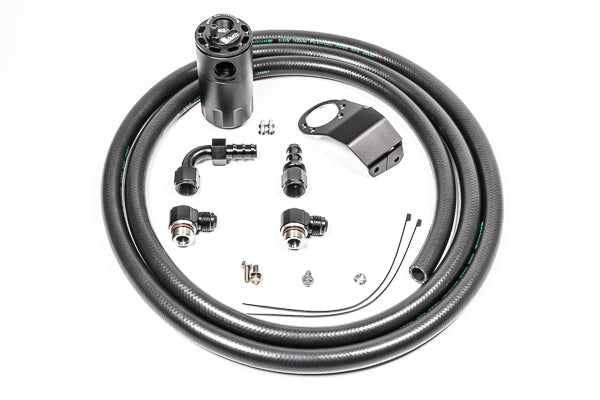

Included

• Baffled oil catch can
• Nissan-specific mounting bracket
• AN adapter fittings and hose ends
• Stainless steel hardware
• Radium PCV hose

Fitment

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
