Radium Engineering CCV Catch Can Kit Toyota 86, Subaru BRZ, Scion FR-S, Fluid Lock - 20-0902-FL

Radium Engineering 20-0902-FL CCV catch can kit with Fluid Lock for the 2012-2021 Toyota 86, 2012-2020 Subaru BRZ and 2012-2016 Scion FR-S.

• CCV-side catch can mounted on the LH side of the engine bay, inline with the 1/2 in breather port
• The hose sees vacuum at high load (WOT). Radium states the kit is a necessity if oil accumulates in a turbo or supercharged intercooler
• Pressure sealed and suitable for boosted applications. Connecting to the intake manifold is permitted
• No drilling required for installation
• 7 fl oz capacity
• 10AN ORB inlet and outlet ports, 4AN ORB drain port
• Two-stage oil separation baffling
• O-ring sealed dipstick
• Patented Fluid Lock system prevents overfilling and holds collected fluid until emptied
• Can locations are set for both RHD and LHD vehicles. Minor tweaks to brake line routing may be required

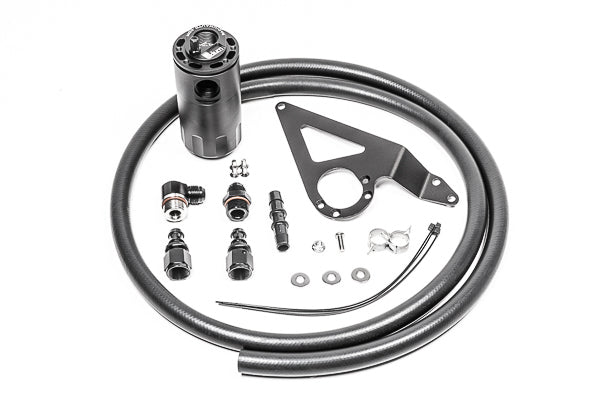

Included

• Fluid Lock catch can
• Anodized aluminum mount bracket
• 1/2 in PCV hose
• 10AN ORB to 8AN male fitting
• 10AN ORB to 8AN male swivel fitting
• Pushlok hose end (x2)
• Installation hardware

Fitment

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
