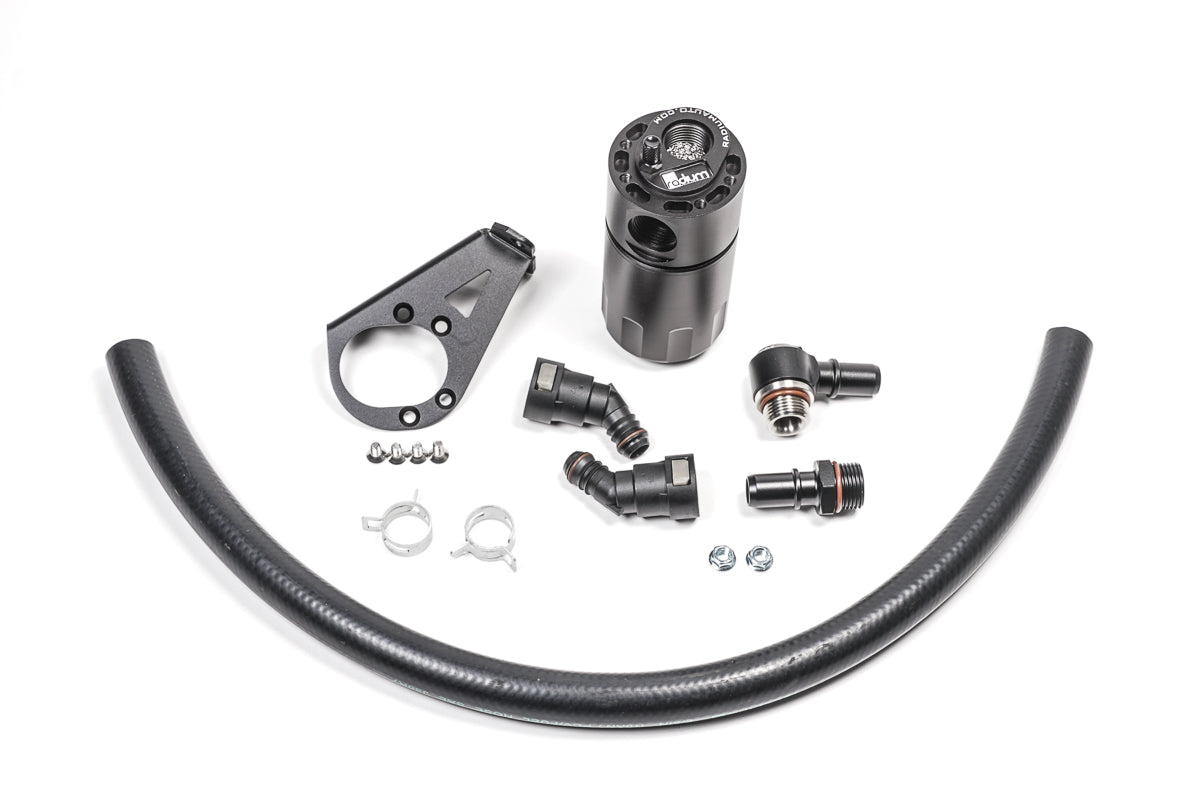

Radium Engineering CCV Catch Can Kit Toyota GR Corolla 2023+, Fluid Lock - 20-0759-FL

Radium Engineering 20-0759-FL CCV catch can kit with Fluid Lock for the 2023+ Toyota GR Corolla.

• CCV-side catch can that runs inline between the valve cover crankcase vent (CCV) port and the turbocharger inlet
• Separates oil and water condensation from the crankcase gases before they reach the intake, keeping the intake tract, intercooler, throttle body and manifold cleaner
• Mounts to the threaded studs on the RH strut tower
• Compatible with the OEM engine cover
• No drilling or permanent modifications required for installation
• 7 fl oz capacity
• 10AN ORB inlet and outlet ports, 4AN ORB drain port
• Two-stage oil separation baffling
• O-ring sealed dipstick
• Patented Fluid Lock system prevents overfilling and holds collected fluid until emptied

Included

• Baffled oil catch can
• GR Corolla specific mounting bracket
• 10AN to SAE quick connect fittings
• SAE quick connect hose ends
• Stainless steel hardware
• Radium PCV hose

Fitment

• Toyota GR Corolla, 2023+ (all models, trims and engines). (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)
