Radium Engineering CCV Catch Can Kit Toyota Tacoma (05-23) Fluid Lock - 20-0839-FL

Radium Engineering 20-0839-FL CCV catch can kit with Fluid Lock for the 2005-2023 Toyota Tacoma (V6 models).

• CCV-side catch can that installs inline on the engine crankcase breather hose to catch oil, fuel and moisture contaminants
• Mounts to threaded bosses on the inner fender in the engine bay, with a supplementary bracket provided
• Direct fit, no drilling required
• 7 fl oz capacity
• 10AN ORB inlet and outlet ports, 4AN ORB drain port
• Two-step oil separation baffling
• O-ring sealed dipstick
• Patented Fluid Lock system prevents overfilling and holds collected fluid until emptied
• Not compatible with LHD manual transmission trucks that have the remote clutch master cylinder reservoir

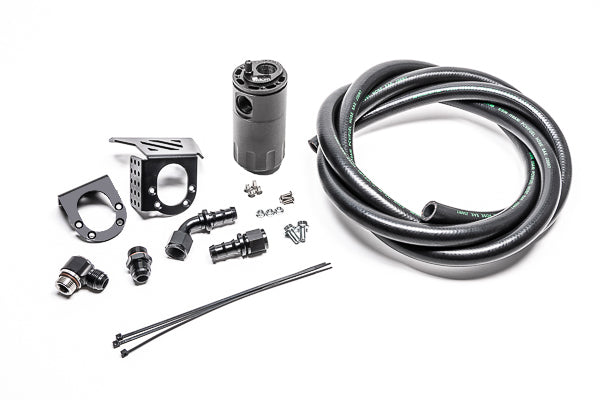

Included

• Baffled oil catch can
• Tacoma-specific mounting bracket
• AN adapter fittings and hose ends
• Stainless steel hardware
• Radium PCV hose

Fitment

• Toyota Tacoma, 2005-2023 (V6 models). (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium Engineering installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
