Radium Engineering CCV Catch Can Kit Toyota Tundra 2007-2021 5.7L 3UR-FE, Fluid Lock - 20-0239-FL

Radium Engineering 20-0239-FL CCV catch can kit with Fluid Lock for the 2007-2021 Toyota Tundra with the 5.7L 3UR-FE engine.

• Installs on the crankcase vent line from the 1/2 in valve cover breather port
• Direct fitment, no drilling required
• Large 10AN ORB inlet and outlet ports, 4AN ORB drain port
• Two-stage oil separation baffling
• O-ring sealed dipstick
• 7 fl oz capacity
• Patented Fluid Lock system prevents overfilling and holds collected fluid until emptied

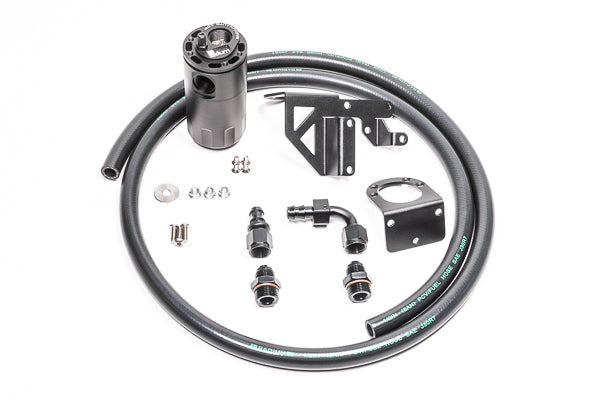

Included

• Fluid Lock catch can
• Tundra-specific laser-cut anodized mounting bracket
• Anodized aluminum 8AN hose ends
• Anodized 8AN adapter fittings
• Stainless steel mounting hardware
• PCV rubber hose

Fitment

• Toyota Tundra 2007-2021, 5.7L 3UR-FE. (Source: Radium Engineering)
• With a TRD or other aftermarket supercharger, check that intercooler plumbing or other supercharger parts do not block the catch can locations before ordering. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
