Radium Engineering CCV Dual Catch Can Kit Chevrolet Corvette C7 LT1 (14-19) Fluid Lock - 20-0986-FL

Radium Engineering 20-0986-FL CCV dual catch can kit with Fluid Lock for the 2014-2019 Chevrolet Corvette C7 LT1.

• Anodized aluminum bracket mounts near the front LH side of the engine
• Polished billet aluminum ground plate secures to 3 OEM grounding points; the dual catch can bracket attaches to this plate
• Wet sump: each valve cover vents to the intake through its own catch can
• Dry sump: the LH valve cover vents through its catch can, and the RH valve cover vents through the dry sump, then its catch can
• Retains factory crankcase venting functionality
• Direct fit, no drilling required
• 7 fl oz capacity
• 10AN ORB inlet and outlet ports, 4AN ORB drain port
• Two-step oil separation baffling
• O-ring sealed dipstick
• Patented Fluid Lock system prevents overfilling and holds collected fluid until emptied

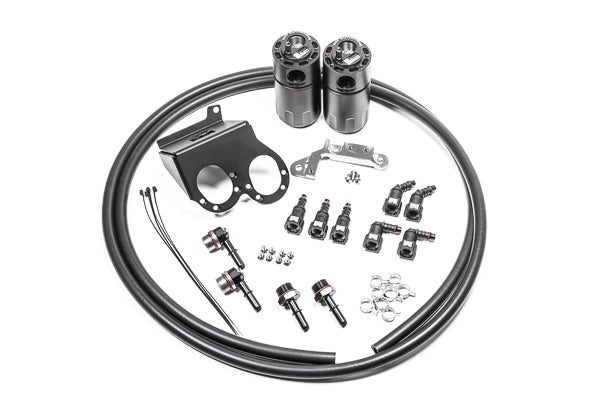

Included

• Baffled oil catch can with integrated condenser and dipstick
• Anodized aluminum mounting bracket
• Polished billet aluminum ground plate
• SAE quick connect fittings
• Stainless mounting hardware
• 3/8 in PCV rubber hose
• Spring clamps

Fitment

• Chevrolet Corvette C7 LT1, 2014-2019 (wet sump). (Source: Radium Engineering)
• Chevrolet Corvette C7 LT1, 2014-2016 (dry sump). (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
