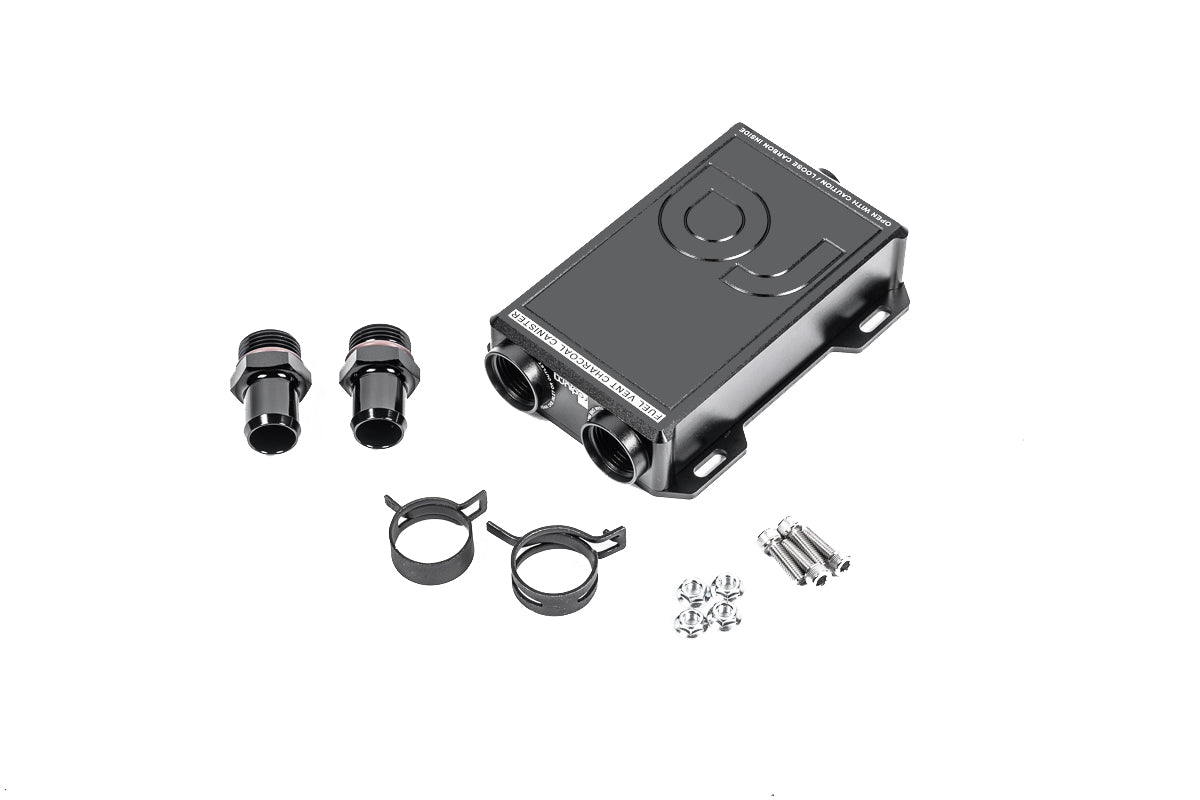

Radium Engineering Compact Fuel Vent Charcoal Canister for 3/4 in Hose - 20-1827-12

Radium Engineering 20-1827-12 compact fuel vent charcoal canister for 3/4 in fuel vent hose. Universal fitment.

• Compact size, easy to fit in tight locations
• Lowers outlet fuel vapor to under 50 ppm
• Holds about one fifth the activated carbon of the standard size canister, so it needs servicing more often
• CNC machined 6061 aluminum with type-II anodizing
• Vibratory-packed carbon held by a 150 micron strainer and an anodized aluminum baffle
• Two 16AN ORB (1-5/16 in-12) female ports; either port can be the inlet or outlet
• Two 4AN ORB (7/16 in-20) female drain ports at the bottom with preinstalled plugs. One can be used with the Radium Petcock Drain Kit, depending on mounting orientation
• High-flow kit for 3/4 in fuel vent hose
• Pairs with Radium fuel cell vent kit 20-0484-12 to integrate with a Radium fuel cell surge tank
• Install notes: keep the vent hose upstream of the air filter higher than the fuel filler, use vent line loops, and mount the air filter at the rear, away from the exhaust

Fitment

• Universal. (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
