Radium Engineering Competition Catch Can L (0.625 qt), Universal VTA/VTE - 20-1772

Radium Engineering 20-1772 Competition Catch Can L, a universal 0.625 quart (0.6 L) catch can that can be installed in VTA or VTE format.

• Volume 0.625 qt / 0.6 L / 20 fl oz; height 6.3 in (160 mm); outer diameter 3.45 in; weight 1.8 lb with hardware
• 10AN ORB (7/8-14) inlet threads and 4AN ORB (7/16-20) drain threads
• Vent to atmosphere (VTA) by default; swap the top VTA plate for the included VTE plate and gasket for a dual inlet / dual outlet vent to engine (VTE) setup. VTE requires a PCV valve (Radium PCV valve sold separately)
• CNC-machined aluminum body; the can unscrews for servicing and the lower half unscrews for draining
• Dual-stage condensing material in the inlet and outlet that does not restrict flow
• Integrated dipstick for checking oil level
• 4AN ORB drain port on the bottom for an optional petcock drain kit
• Bracket allows full 360 degree rotation; M6x1 mm hardware provided for chassis mounting
• Fittings are sold separately
• Not designed for aftermarket crankcase vacuum pumps

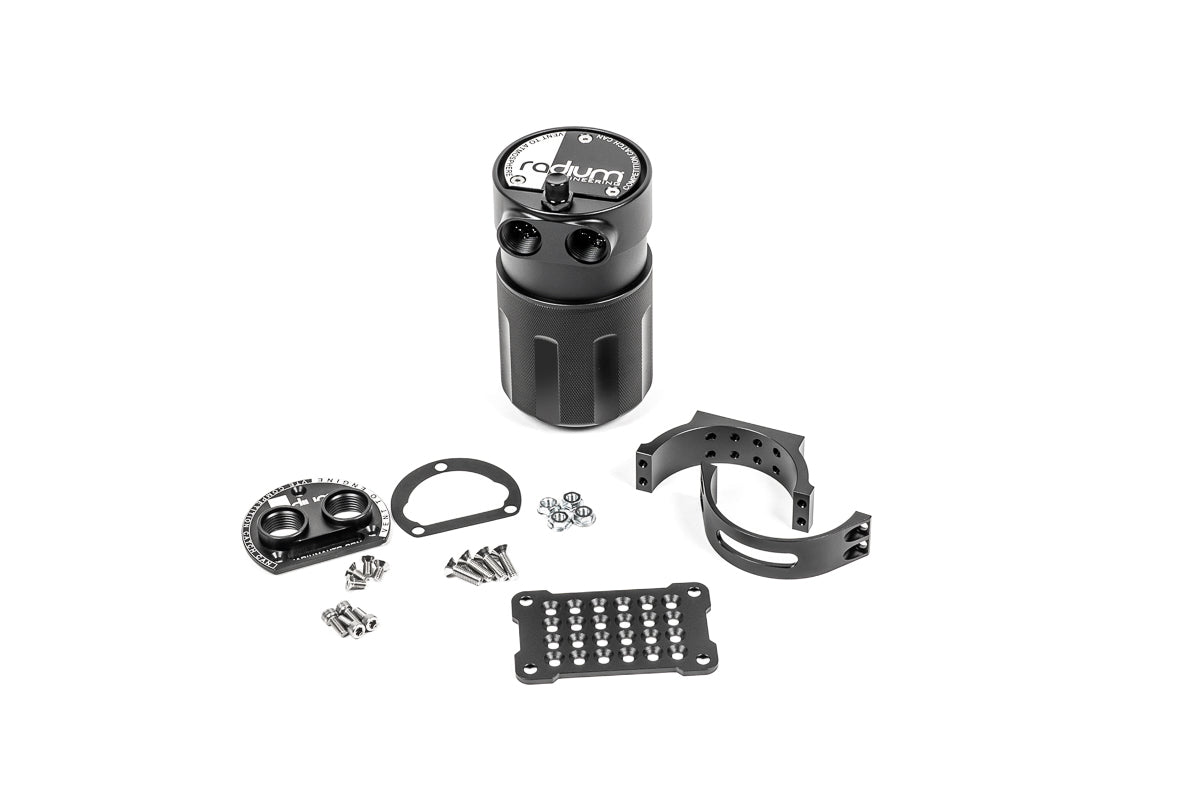

Included

• Competition catch can
• VTE adapter
• Anodized aluminum mounting brackets
• Stainless steel mounting hardware

Fitment

• Universal. Can be installed in VTA format, or VTE format with the included adapter, on any engine. (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
