Radium Engineering Competition Catch Can XL (1 qt), Universal VTA/VTE - 20-1771

Radium Engineering 20-1771 Competition Catch Can XL, a universal 1 quart (0.9 L) catch can that can be installed in VTA or VTE format.

• Volume 1 qt / 0.9 L / 32 fl oz; height 9.0 in (229 mm); outer diameter 3.45 in; weight 2.2 lb with hardware
• Meets the 1 quart minimum often required by organizations such as SCCA, NASA and Formula Drift
• 10AN ORB (7/8-14) inlet threads and 4AN ORB (7/16-20) drain threads
• Vent to atmosphere (VTA) by default; swap the top VTA plate for the included VTE plate and gasket for a dual inlet / dual outlet vent to engine (VTE) setup. VTE requires a PCV valve (Radium PCV valve sold separately)
• CNC-machined aluminum body; the can unscrews for servicing and the lower half unscrews for draining
• Dual-stage condensing material in the inlet and outlet that does not restrict flow
• Integrated dipstick for checking oil level
• 4AN ORB drain port on the bottom for an optional petcock drain kit
• Bracket allows full 360 degree rotation; M6x1 mm hardware provided for chassis mounting
• Fittings are sold separately
• Not designed for aftermarket crankcase vacuum pumps

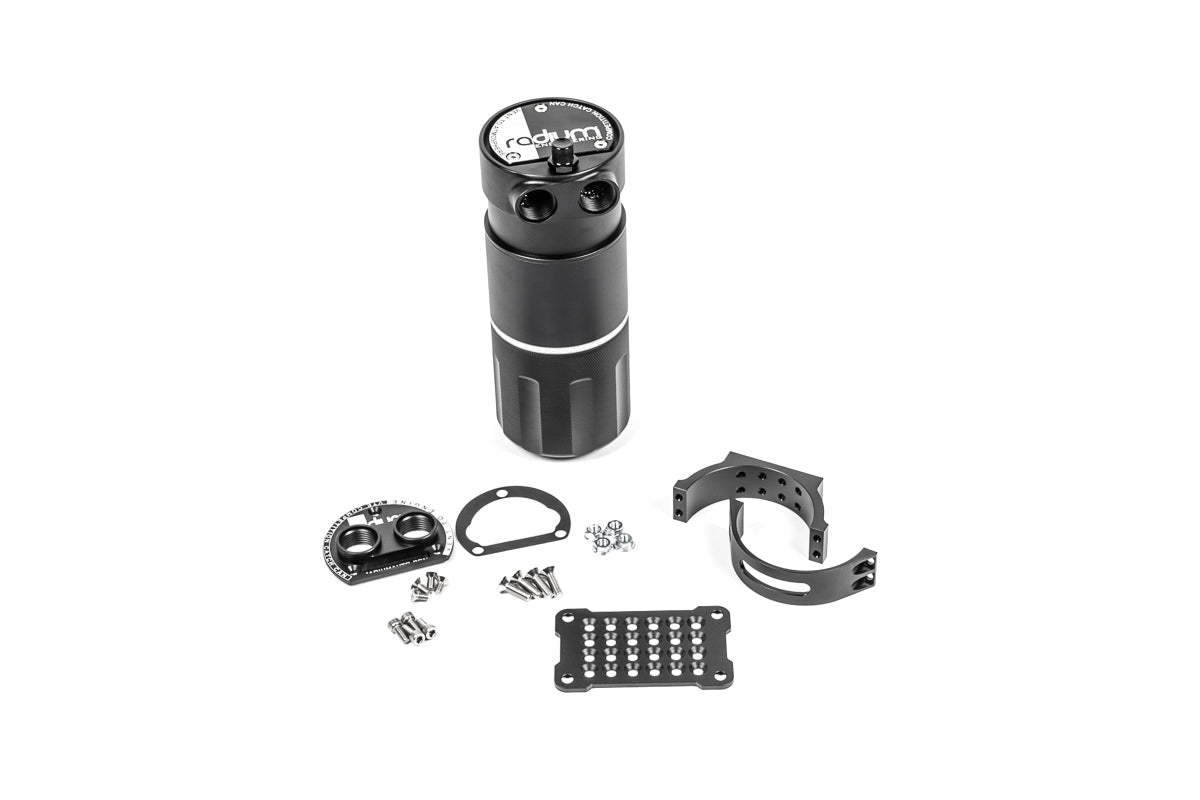

Included

• Competition catch can
• VTE adapter
• Anodized aluminum mounting brackets
• Stainless steel mounting hardware

Fitment

• Universal. Can be installed in VTA format, or VTE format with the included adapter, on any engine. (Source: Radium Engineering)

Resources

• Radium Engineering product page
