Radium Engineering Coolant Tank Kit Lotus Elise/Exige, Remote Firewall Mount - 20-0270-02

Radium Engineering 20-0270-02 remote firewall mount coolant tank kit for the Lotus Elise and Exige.

• Remote-mounted coolant header tank for custom applications such as engine swaps and turbocharger kits where the OEM expansion tank location is no longer suitable
• Two-piece CNC 6061 billet aluminum tank bolted together
• Billet cap receiver accepts a standard 32mm Type-A pressure cap
• Suited to low-mounted radiators (such as V-Mount) to help bleed air from the system
• Internal swirl feature uses tangential inlet flow to aid de-aeration
• Pressure cap not included. The OEM Lotus cap is 1.1 Bar. Optional Radium pressure caps are sold separately
• A separate Radium kit (20-0270-01) is available for installation in the OEM location

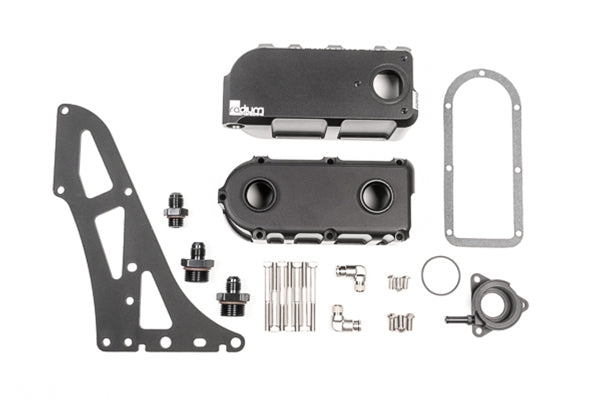

Included

• Billet aluminum coolant tank, anodized black
• Aluminum 6AN male adapter fittings, anodized black
• Nickel-plated sight tube fittings
• Billet aluminum 32mm pressure cap receiver
• Billet aluminum pressure bleed nipple
• Laser-cut aluminum firewall mounting bracket, powder-coated black
• Aluminum and stainless steel mounting hardware

Fitment

• Lotus Elise. (Source: Radium Engineering)
• Lotus Exige. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
