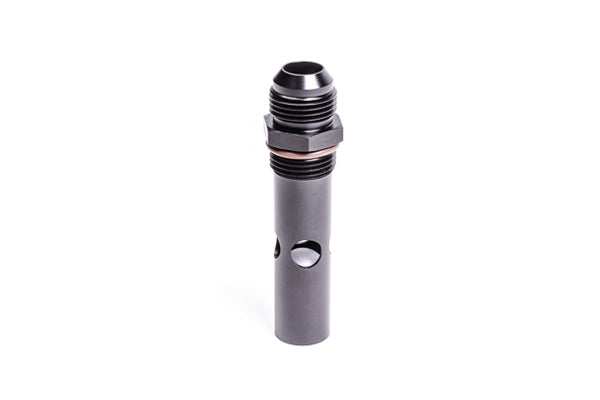

Radium Engineering DSV 12AN ORB to 12AN Male, Low Fill - 20-0535

Radium Engineering 20-0535 DSV (dynamic safety vent valve) with a 12AN ORB to 12AN male connection, Low Fill. Intended for fuel cells with a small width x length footprint and a shorter height to the filler.

• Shut-off ball sits lower than the highest point of the fill point
• Internally mounted
• Intended for vented dry break receivers that do not pressurize
• Shuts off venting sooner to prevent overfilling
• Disassembles for cleaning
• Compatible with all fuel types, including methanol and E85
• 1-piece billet 6061 aluminum, type-II anodized
• Should not be used with standard fillers

Fitment

• Fuel cells with a small width x length footprint and shorter height to the filler, used with a vented dry break receiver. (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
