Radium Engineering Dual Catch Can Kit Mazda MX-5 Miata NB (1998-2005), Fluid Lock - 20-1338-FL

Radium Engineering 20-1338-FL dual catch can kit with Fluid Lock for the 1998-2005 Mazda MX-5 Miata NB. Combines the 20-1336-FL PCV kit and the 20-1337-FL CCV add-on in one package, isolating both breather ports.

• No drilling required. Mounts on the right side of the engine bay near the coolant reservoir using OEM holes
• Suitable for 1.6L and 1.8L engines, LHD and RHD vehicles
• The PCV can runs inline with the PCV valve and keeps the factory PCV function
• 10AN ORB inlet and outlet ports and a 4AN ORB drain port on each can
• Two-stage oil separation baffling
• O-ring sealed dipstick
• 7 fl oz capacity per can
• Patented Fluid Lock system prevents overfilling and holds collected fluid until emptied
• Pressure sealed, so intake manifold connection is permitted, including on boosted applications

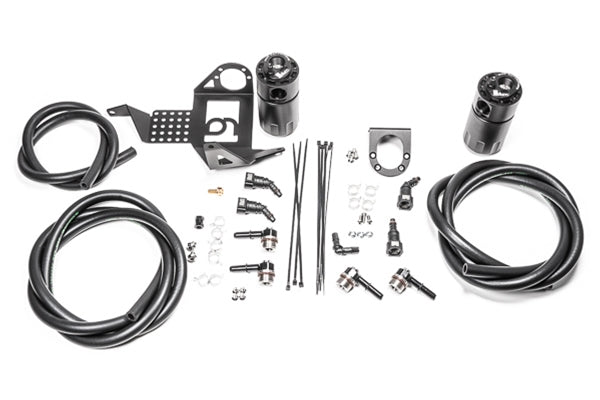

Included

• Fluid Lock catch can (x2)
• Anodized aluminum mount bracket (x2)
• 3/8 in PCV hose
• 5/16 in heater hose
• 10AN ORB to 10mm SAE quick connect fitting (x4)
• SAE quick connect hose end (x4)
• Installation hardware

Fitment

• Mazda MX-5 Miata NB, 1998-2005, 1.6L and 1.8L engines. (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
