Radium Engineering Dual Catch Can Kit Mitsubishi Lancer Evolution VIII-IX, Fluid Lock - 20-0118-FL

Radium Engineering 20-0118-FL Fluid Lock dual catch can kit for the Mitsubishi Lancer Evolution VIII and IX. Combines the PCV and CCV catch can kits in one box. Does not fit right-hand-drive (RHD) models.

• PCV can installs by the right strut tower, in-line between the PCV valve and intake manifold
• CCV can installs by the left strut tower, in-line with the crankcase vent hose running from the valve cover to the turbo intake pipe
• Direct fitment, no drilling required
• 10AN ORB inlet and outlet ports, 4AN ORB drain port
• Two-step oil separation baffling
• O-ring sealed dipstick
• 7 fl oz capacity per can
• Patented Fluid Lock system prevents overfilling and holds collected fluid until the can is emptied
• No fixed emptying interval. Check the dipstick starting 3-4 weeks into driving
• Cans can be emptied by removing the lower reservoir, or with the separate Petcock Drain Kit where space allows

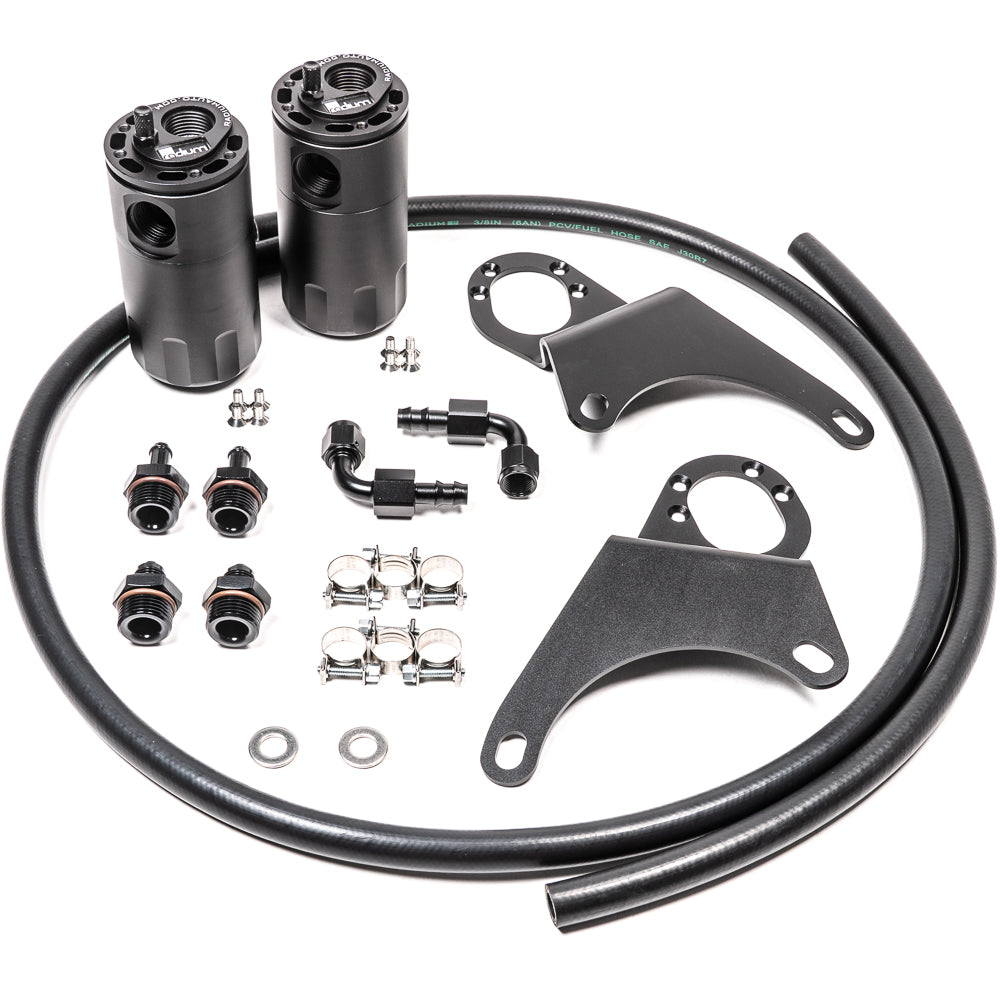

Included

• Billet oil catch cans with integrated condensers and dipsticks (PCV and CCV)
• Laser-cut anodized mounting brackets (right-hand and left-hand)
• Anodized aluminum hose ends and adapter fittings
• Black PCV hose for custom applications
• Stainless steel mounting hardware

Fitment

• Mitsubishi Lancer Evolution VIII, LHD only. (Source: Radium Engineering)
• Mitsubishi Lancer Evolution IX, LHD only. (Source: Radium Engineering)
