Radium Engineering Dual Catch Can Kit Mitsubishi Lancer Evolution X (2008-2016), Fluid Lock - 20-1107-FL

Radium Engineering 20-1107-FL dual catch can kit with Fluid Lock for the 2008-2016 Mitsubishi Lancer Evolution X. The kit consists of the 20-0105-FL (PCV) and 20-1106-FL (CCV) catch can kits.

• Direct fit, no drilling required
• PCV can mounts behind the RH headlight and plumbs inline with the PCV hose
• CCV can mounts behind the LH headlight and plumbs inline with the CCV hose, which runs from the valve cover port to the turbo air intake pipe
• 10AN ORB inlet and outlet ports and a 4AN ORB drain port
• Two-step oil separation baffling
• O-ring sealed dipstick
• 7 fl oz capacity per can
• Patented Fluid Lock system prevents the reservoir from overfilling and traps the collected fluids until it is emptied
• Pressure sealed, so the PCV can connects to the intake manifold on boosted applications without a check valve
• The PCV kit needs a vacuum signal from the intake manifold to open the PCV valve
• Some European models have headlamp washer reservoirs that interfere with the PCV kit

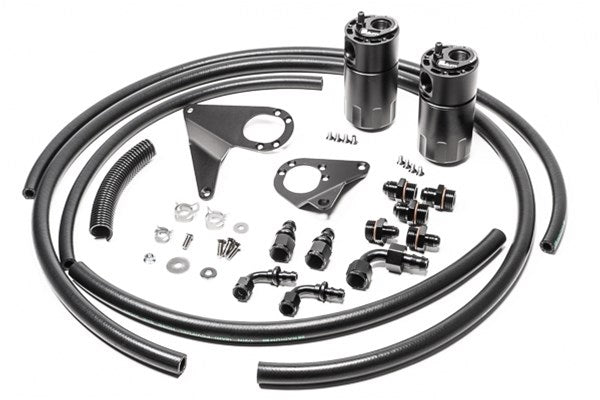

Included

• Billet catch cans with integrated condenser and dipstick (PCV and CCV)
• Laser-cut, powder-coated mounting brackets (RH for PCV, LH for CCV)
• 6AN and 8AN aluminum hose ends and adapter fittings
• 3/8 in and 1/2 in PCV hose for custom applications
• Stainless steel mounting hardware

Fitment

• Mitsubishi Lancer Evolution X, 2008-2016. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium Engineering EVO X catch can kits page
